Building Services

When it comes to water transfer, pressure boosting , fire fighting, utility services, drainage and dewatering solutions and products developed by Wilo are the ideal partners for high efficeincy pumps and pumping systems for high rise and commercial buildings like malls, airports and other properties.

Therefore Techflow Industry provides its customers with best sought-after solutions that fits their needs perfectly.


Filter Categories

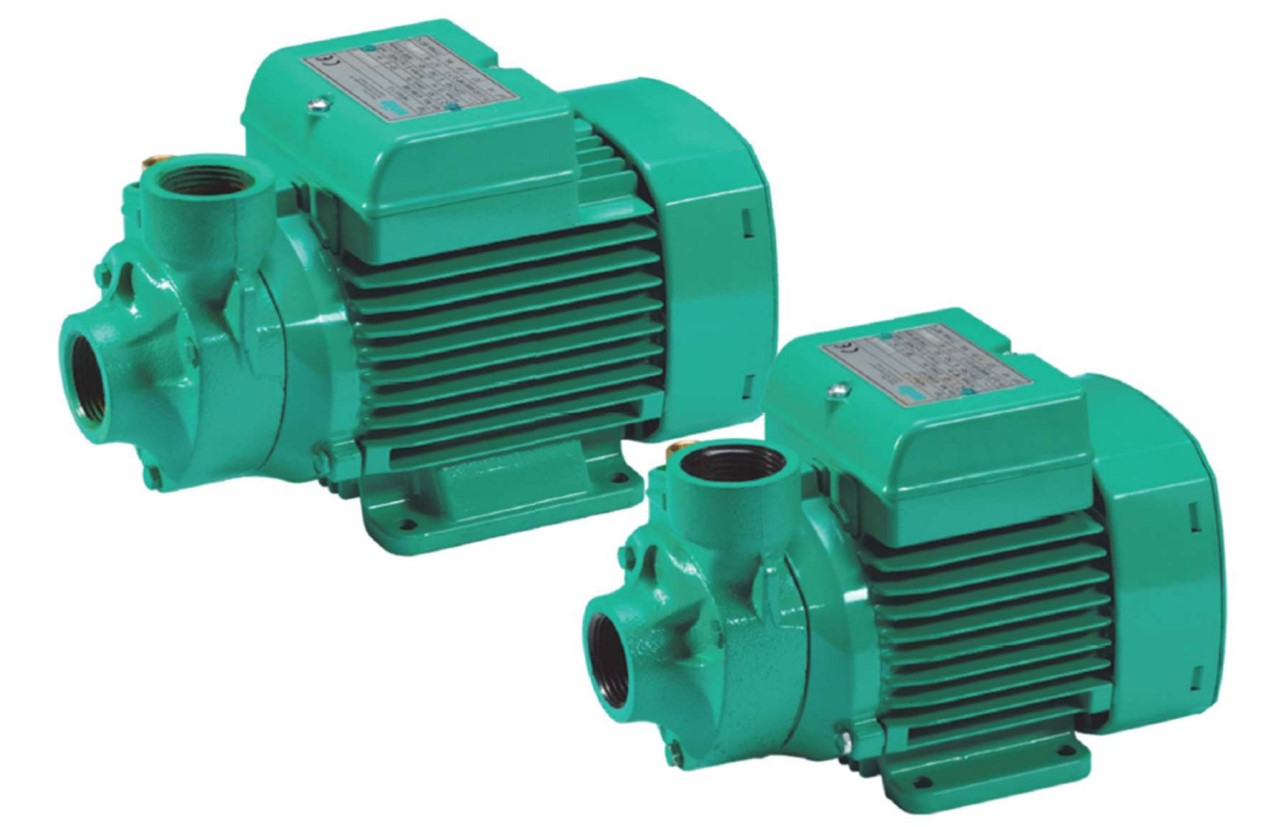

HI Peri New Arrival
  • Features
    Motor Body Cast Iron   1
    Impeller Brass   2
    Max Operating Pressure 6.5 Bar   3
    Suction head upto 8 mtr
    Start Stop /hour upto 20
    Insulation Class "F"
    Suction & Devilery Size 25x25 mm   4
    Voltage band 230V, Standard Voltage   4
    Sound Pressure Level < 70 dBA   5
    Shaft Stainless Steel   6
  • Benefits
    1 Robust & more reliable
    2 Can handle fluid up to 60 ℃
    3 Expandable with electronic control of pumps Wilo-HI Control 1
    4 Standard application
    5 Low noise level
    6 Longer durability

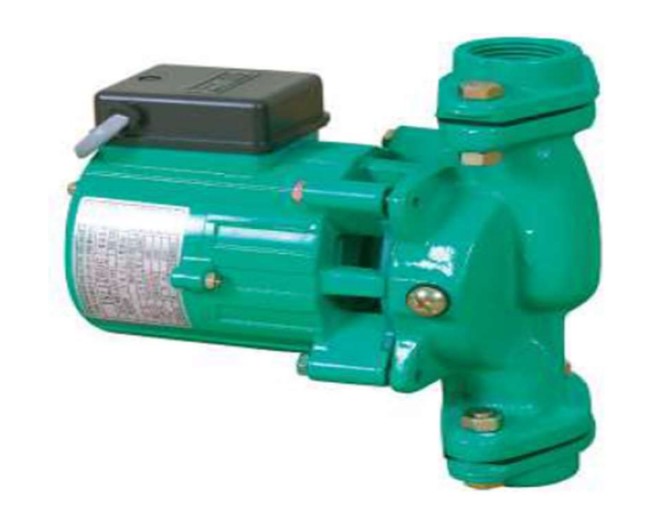

PH Series New Arrival
  • Technical Data
    Flow upto 300 LPM
    Head 30 mtr
    Supply Voltage 1ph & 3ph
    Power upto 2.2 kW (3hp)
    Motor Body Aluminium die cast
  • Application
    Hot water circulation

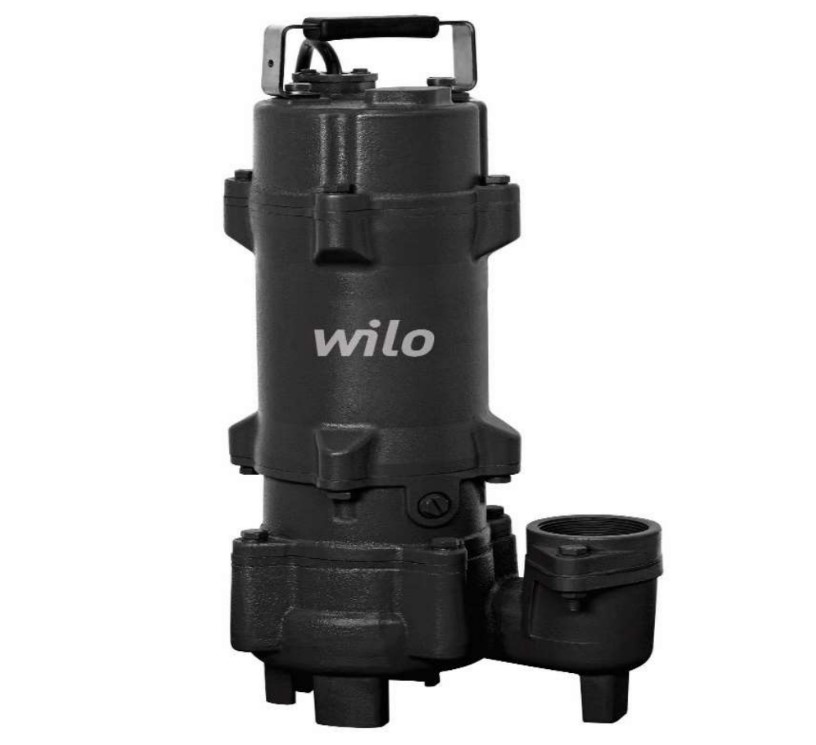

Sewage submersible - STRIKER New Arrival
  • Features
    Motor Body Cast Iron   1
    Impeller Vortex Type   2
    Rotor Copper   3
    Sealing Arrangement Mechanical Seal Plus Oil Chamber   4
    Solid Handling 35 mm   5
    Float Switch Available   6
    Devilery Size 50 mm   7
    Voltage band 240V, Standard Voltage   7
    Coating CED   8
    Cable Length 5 mtr   9
  • Benefits
    1 Robust & more reliable
    2 High discharge with lower current consumption
    3 Longer durability
    4 Negligible chance of water entering the motor
    5 Free ball passage
    6 Better Protection
    7 Standard application
    8 Protection from Rusting
    9 Easy to connect to power source


Wilo Mini Series New Arrivals
  • Application
    Bunglows
    Apartments
    Softner, RO
    Industry
  • Material of Construction
    Casing Cast Iron
    Impeller Brass
    Moto Body Cast Iron / Aluminium extruded / Aluminium Pressure Die cast
    Winding 100% Copper

  View Solutions

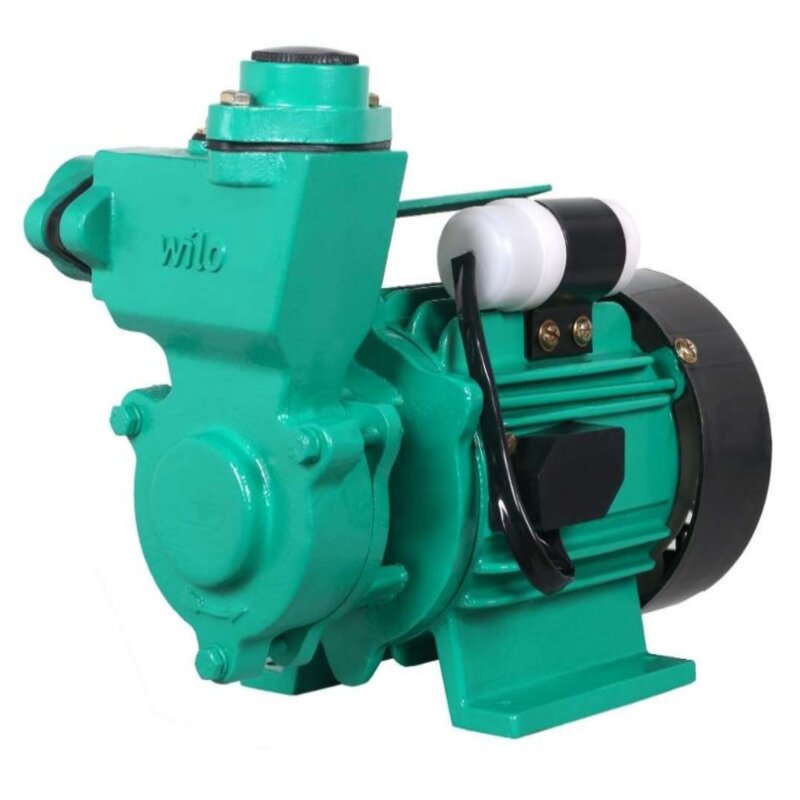

Wilo Mini - Emperor New Arrival
  • Technical Data
    Flow upto 2700 LPH
    Head upto 32 m
    Power upto 0.75 kW (1.0hp)
    Voltage 180 to 250 V
  • Application
    Bungalows / Apartments / Softner, RO / Industry
  • Material of Construction
    Casing Cast Iron
    Impeller Brass
    Moto Body Cast Iron
    Winding 100% Copper

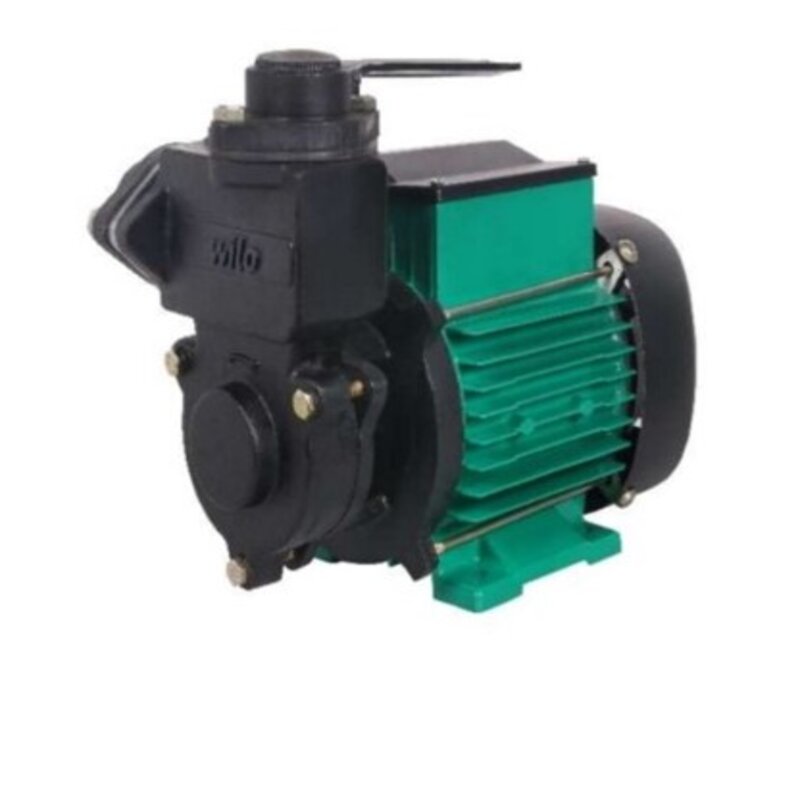

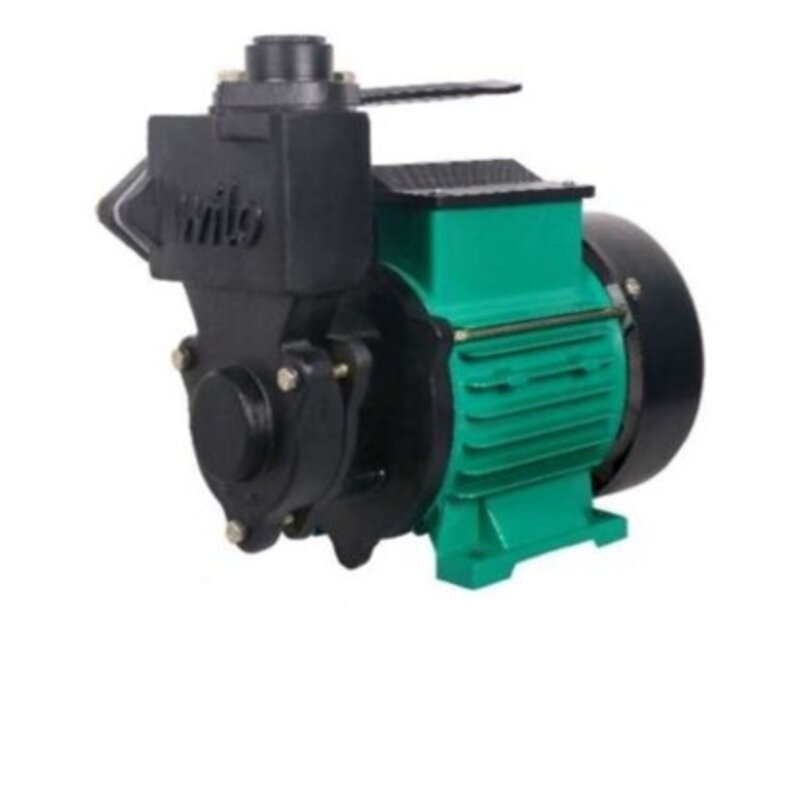

Wilo Mini - King Master New Arrival
  • Technical Data
    Flow upto 3000 LPH
    Head upto 50 m
    Power upto 0.75 kW (1.0hp)
    Voltage 180 to 250 V
  • Application
    Bungalows / Apartments / Softner, RO / Industry
  • Material of Construction
    Casing Cast Iron
    Impeller Brass
    Moto Body Aluminium Pressure Die cast
    Winding 100% Copper

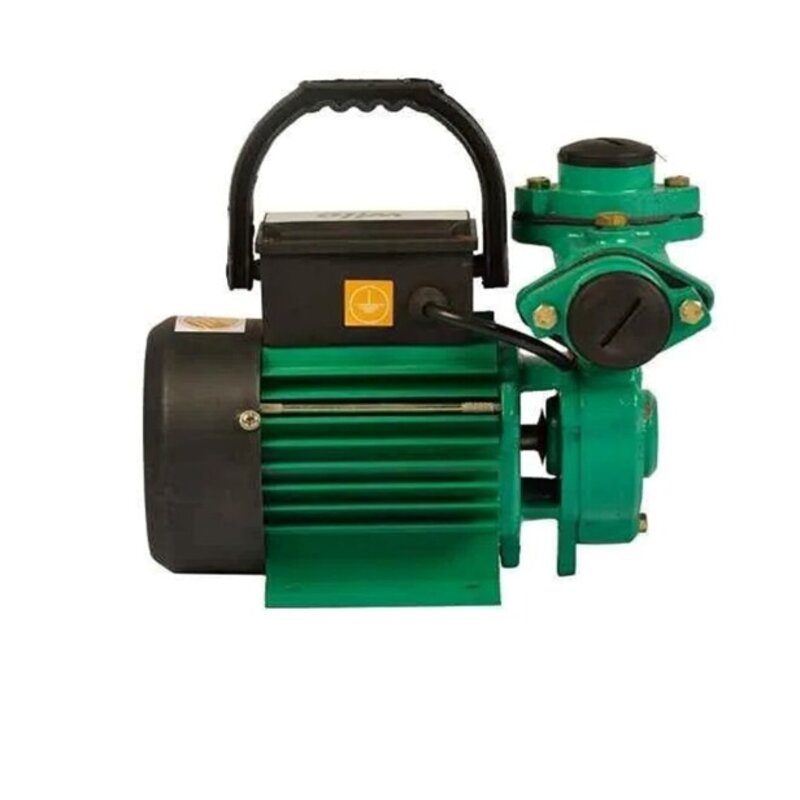

Wilo Mini Crown / Prince / Royal New Arrival
  • Technical Data
    Flow upto 4200 LPH
    Head upto 54 m
    Power upto 1.1 kW (1.5hp)
    Voltage 240/415 V
  • Application
    Bungalows / Apartments / Softner, RO / Industry
  • Material of Construction
    Casing Cast Iron
    Impeller Brass
    Moto Body Aluminium extruded
    Winding 100% Copper

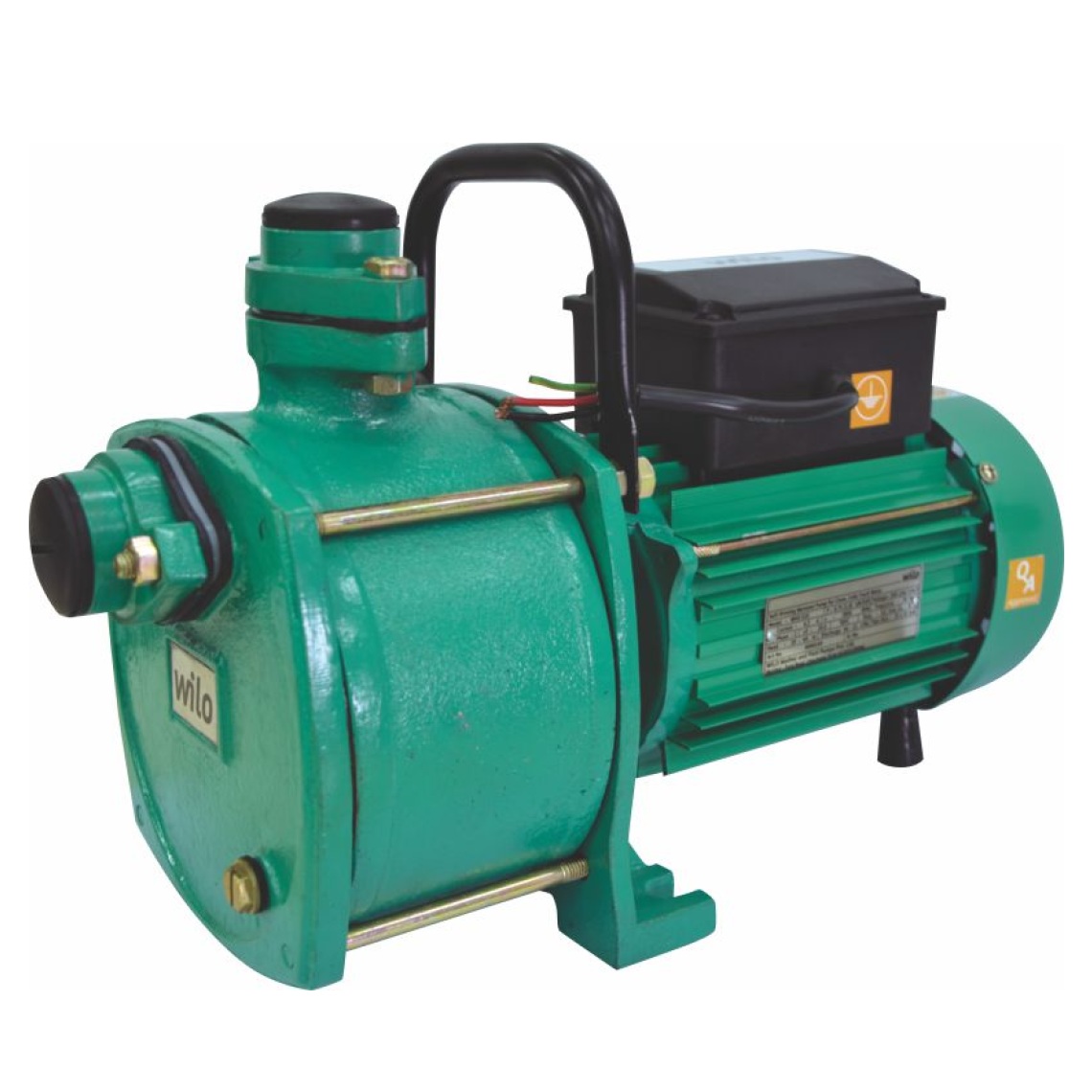

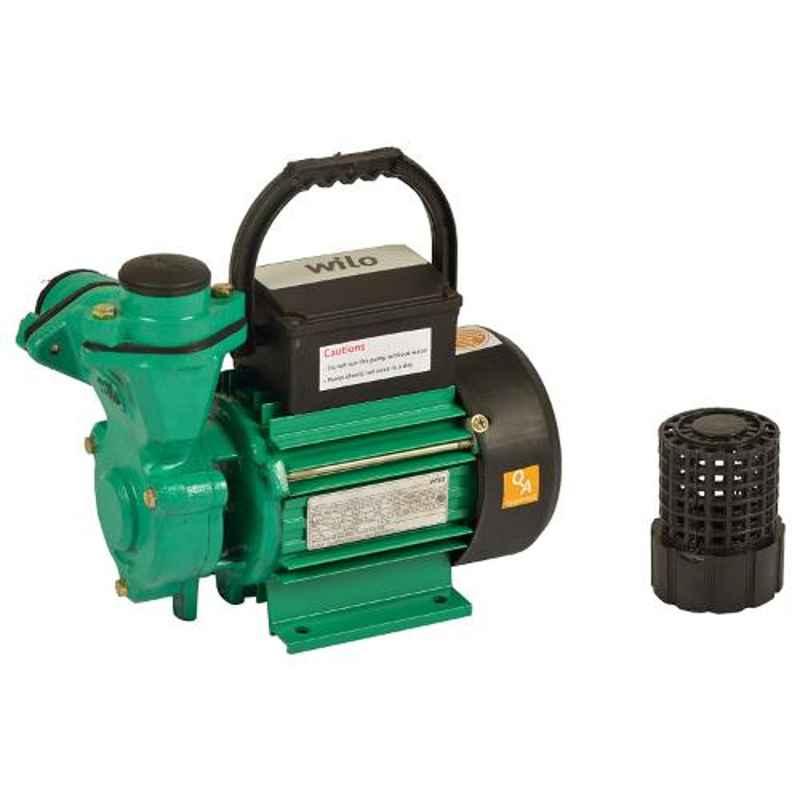

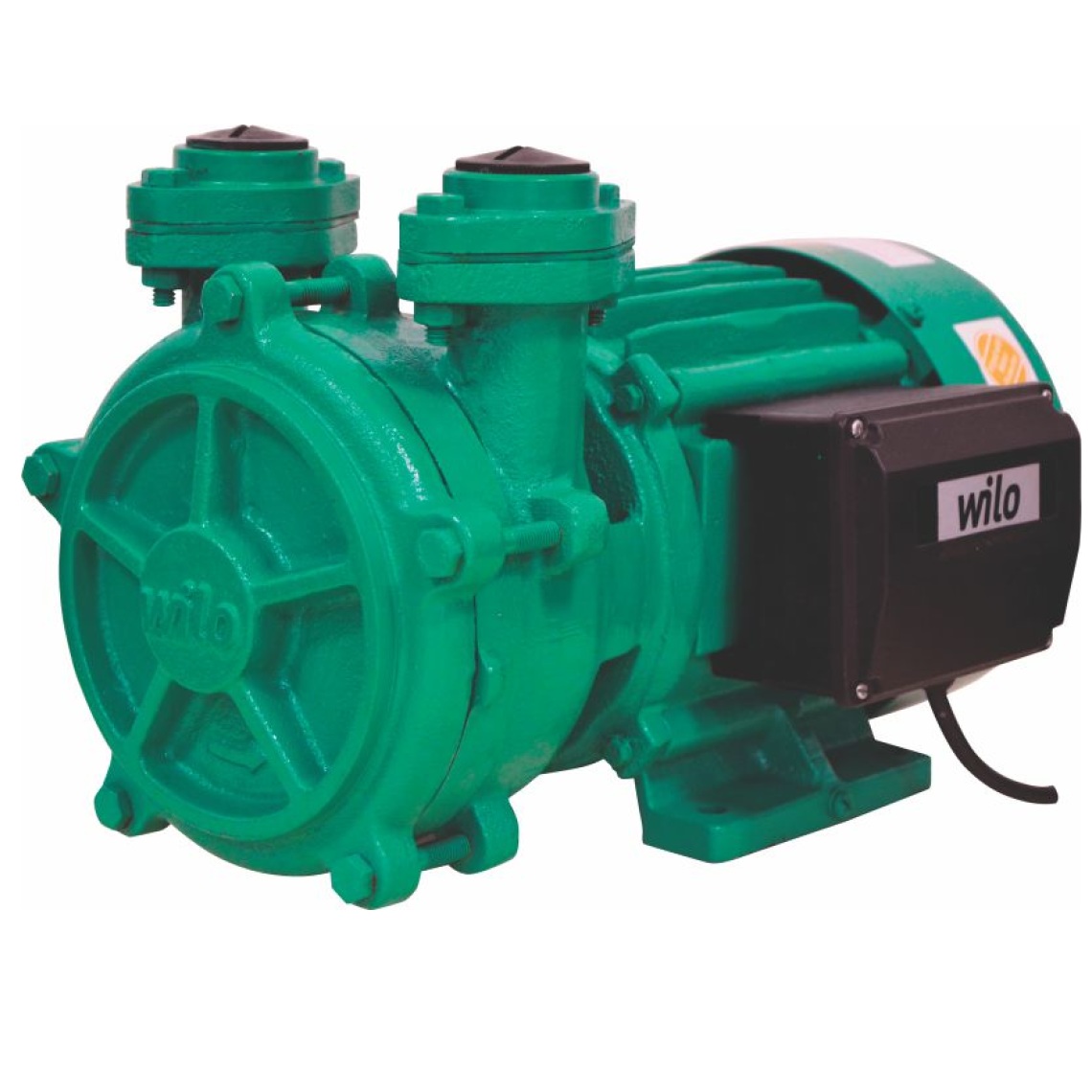

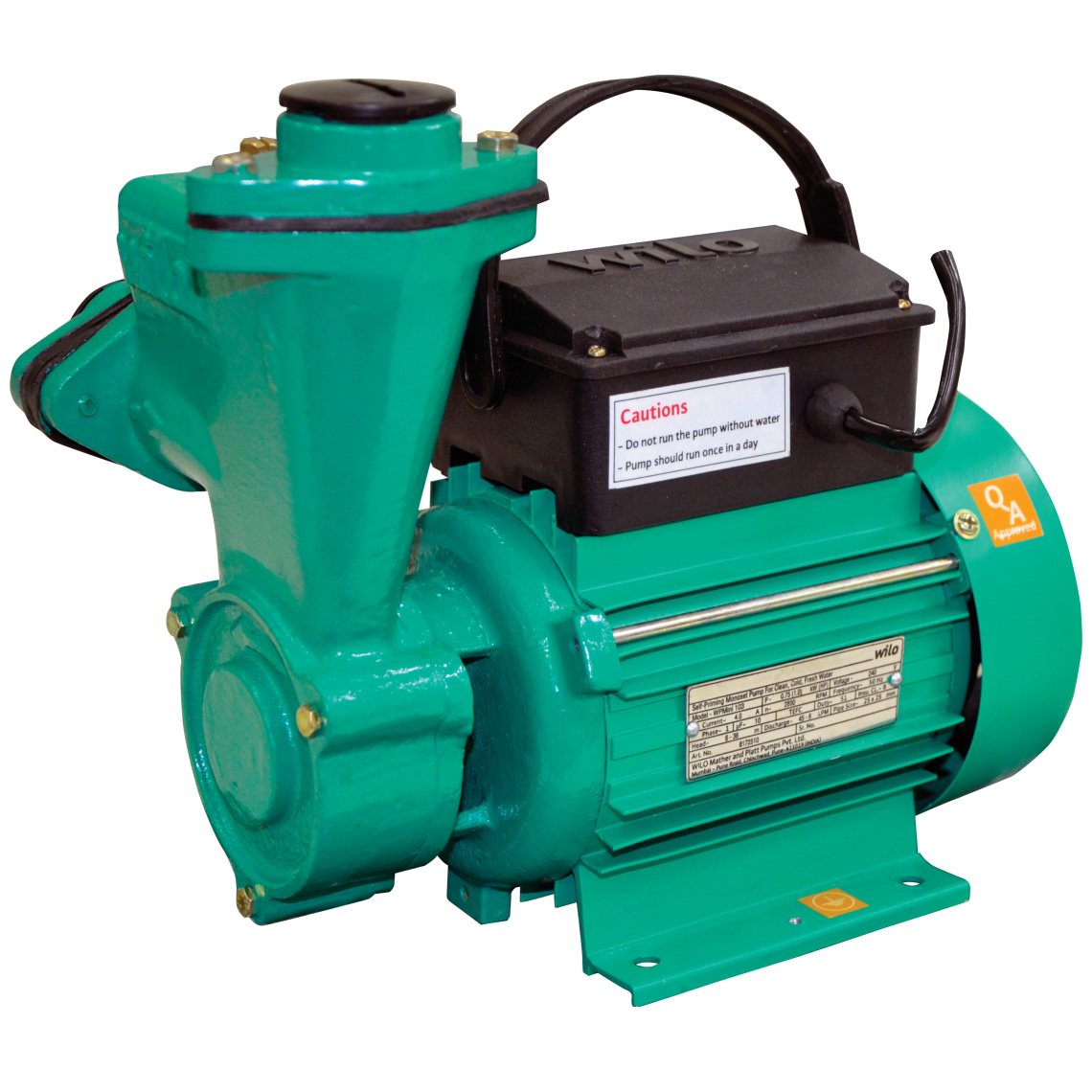

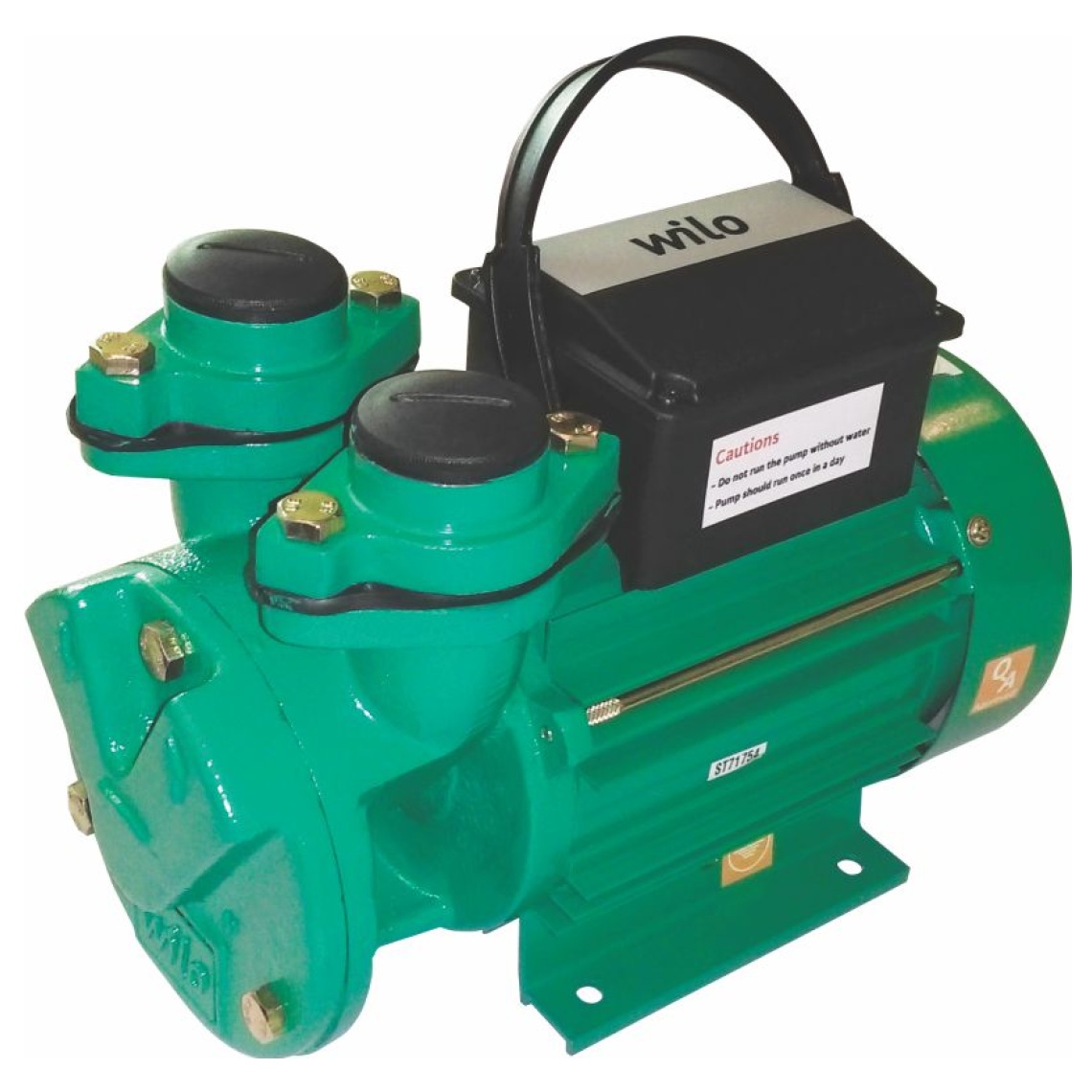

Self-priming mini pumpset - Wilo Mini / Wilo Crown
  • Technical Data
    Flow upto 73 LPM
    Head upto 45 m
    Power upto 0.75 kW (1hp)
    Voltage 240V
  • Application
    Water transfer in - bungalows / farm houses / apartments / industry Use
  • Features
    Suitable for wide band of voltage i.e. 160 volts to 250 volts, life long permanent lubricated bearings, built in thermal over-load protection, TEFC, capacitor start & run Motor, insulation class B, high suction lift upto 7.3 m (at 240 V, single phase), high quality aluminium extruded motor body, direction of rotation - anticlockwise, when viewed from drive end and low life cycle cost - low maintenance, low power consumption and easy motor rewinding

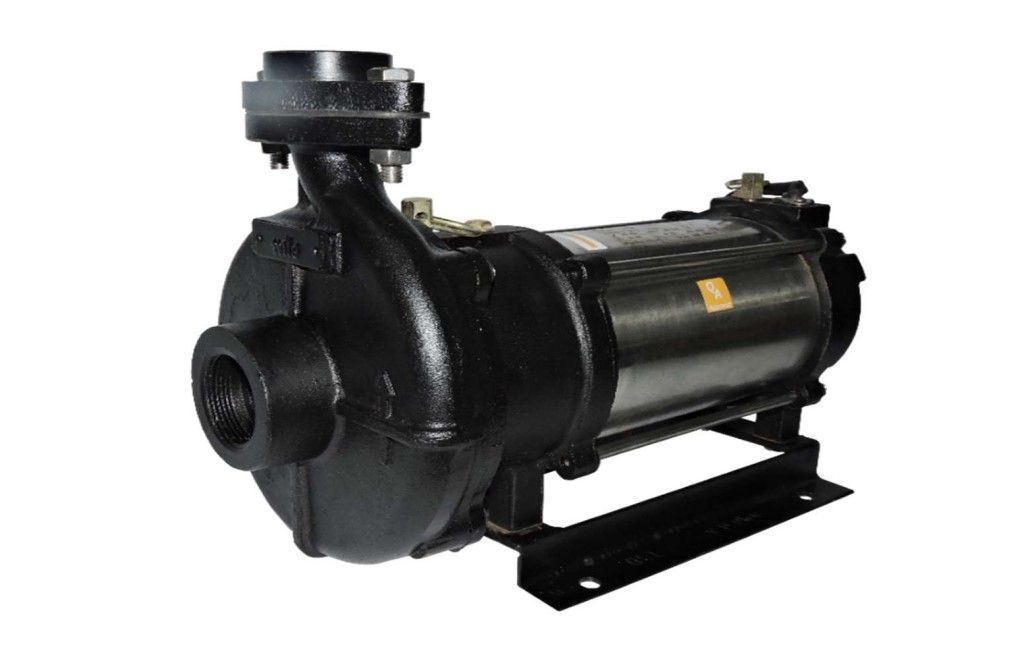

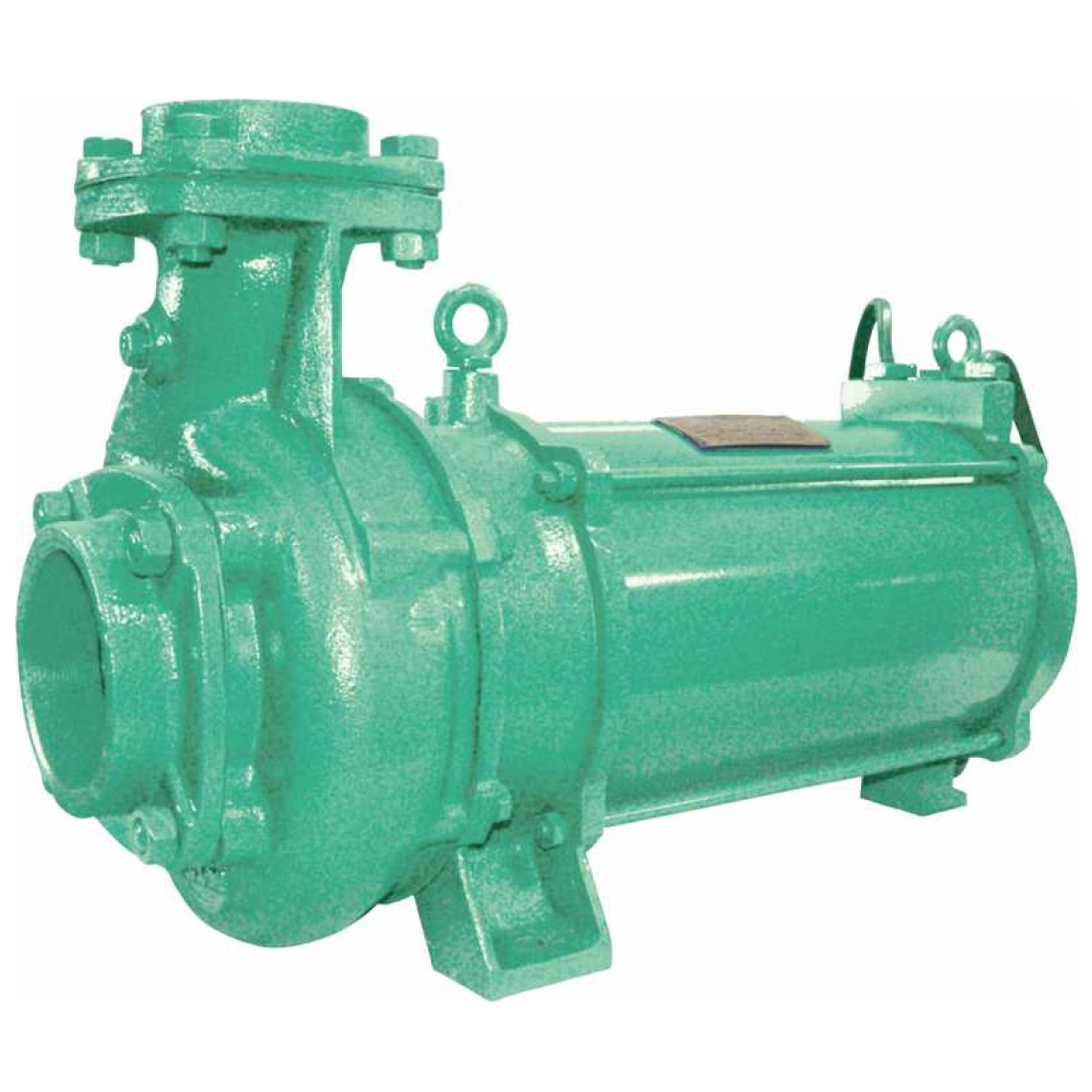

Open well submersible - RAPTOR
  • Features
    Motor Body SS 304/CI   1
    Impeller Noryl-GF-30 & Cast Iron   2
    Rotor Aluminium/Copper   3
    Sealing Arrangement Mechanical Seal Plus Oil seal   4

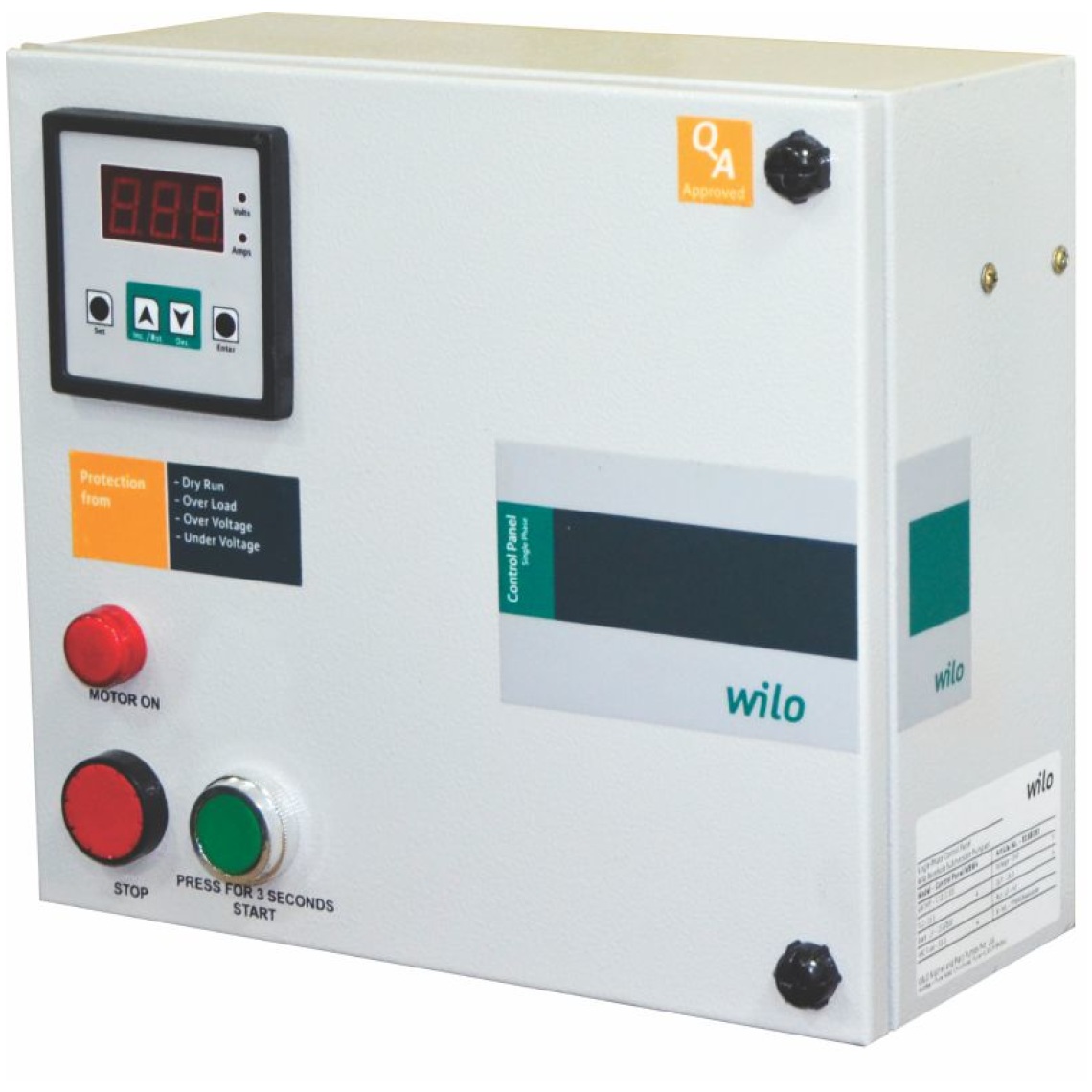

    Control Panel Available   5
    Pipe Size 32, 40, 50, 65, 75, 100 mm   6
    Voltage Band 160 to 240 wide voltage application   6
  • Benefits
    1 Robust & more reliable
    2 High discharge with lower current consumption
    3 Longer durability
    4 Less chances of water entering the motor
    5 Better Protection as per our design
    6 Standard plus agriculture application

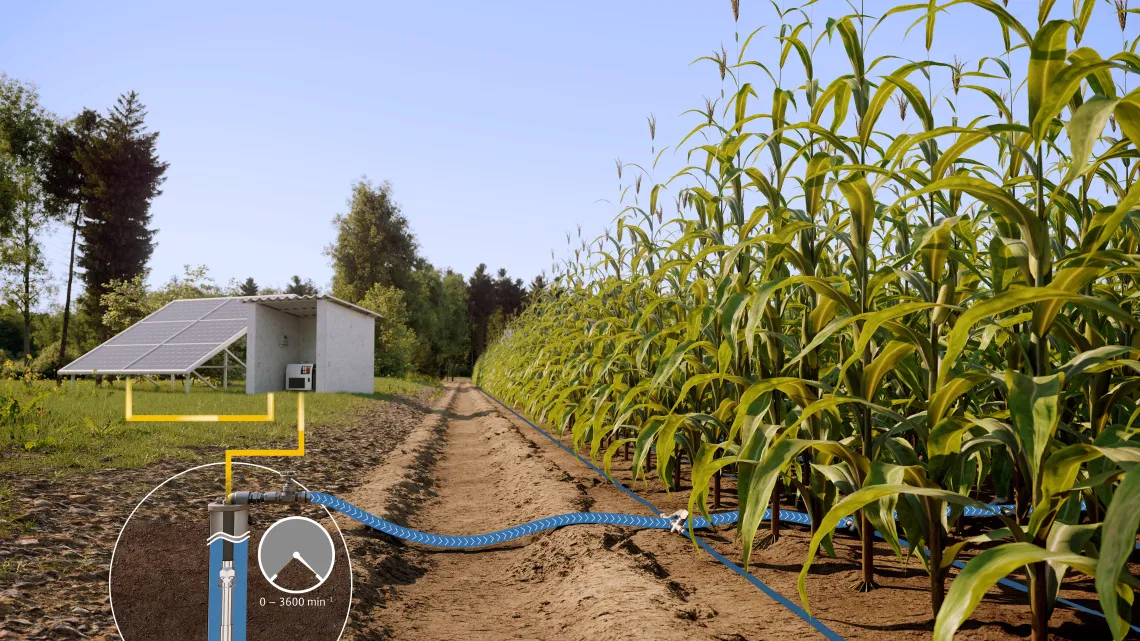

Actun OPTI-MS
  • Wilo-Actun OPTI-MS
    Autonomous, optimised water supply using solar power.
    Ensuring a reliable water supply in arid and remote regions not connected to the power grid is a challenge. The new solar-powered Wilo-Actun OPTI-MS, provides a solution which is independent of the mains power supply for an effective and reliable water supply.
  • Technical Data
    Operating Voltage 70-190 V DC
    Submerged Operating Mode S1
    Max. fluid temperature 35°C
    Minimum flow rate at motor 0.2 m/s
    Max. sand content 50 g/m3
    Max. immersion depth 150 m
    Protection Class IP68
    Pressure connection Rp 11⁄4 - Rp 11⁄2
  • Construction
    Multistage submersible pump in tie strap version (QSI) or as a progressive cavity pump (QSH) for vertical or horizontal installation
  • Application
    Specially designed for operation with photovoltaic modules
    For water supply and drinking water supply from boreholes and rainwater storage tanks
    Process water supply
    Sprinkling and irrigation
    For pumping water without long-fibre and abrasive constituents
  • Equipment/Function
    Fully submersible, multistage submersible pump -
    • as centrifugal pump in sectional construction (QSI) or
    • as progressive cavity pump (QSH)
    with integrated non-return valve
    with corrosion-free, encapsulated permanent magnet motor with water-glycol filling

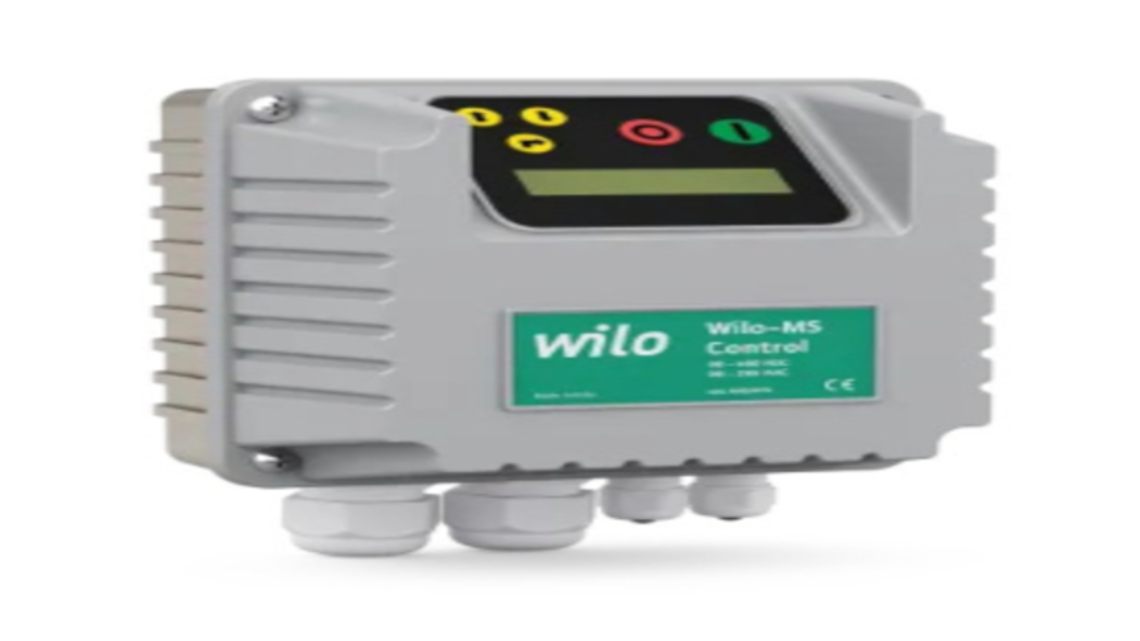

    Built-in frequency converter
    Integrated software algorithm MPPT (“Maximum Power Point Tracking”) for applications with solar modules

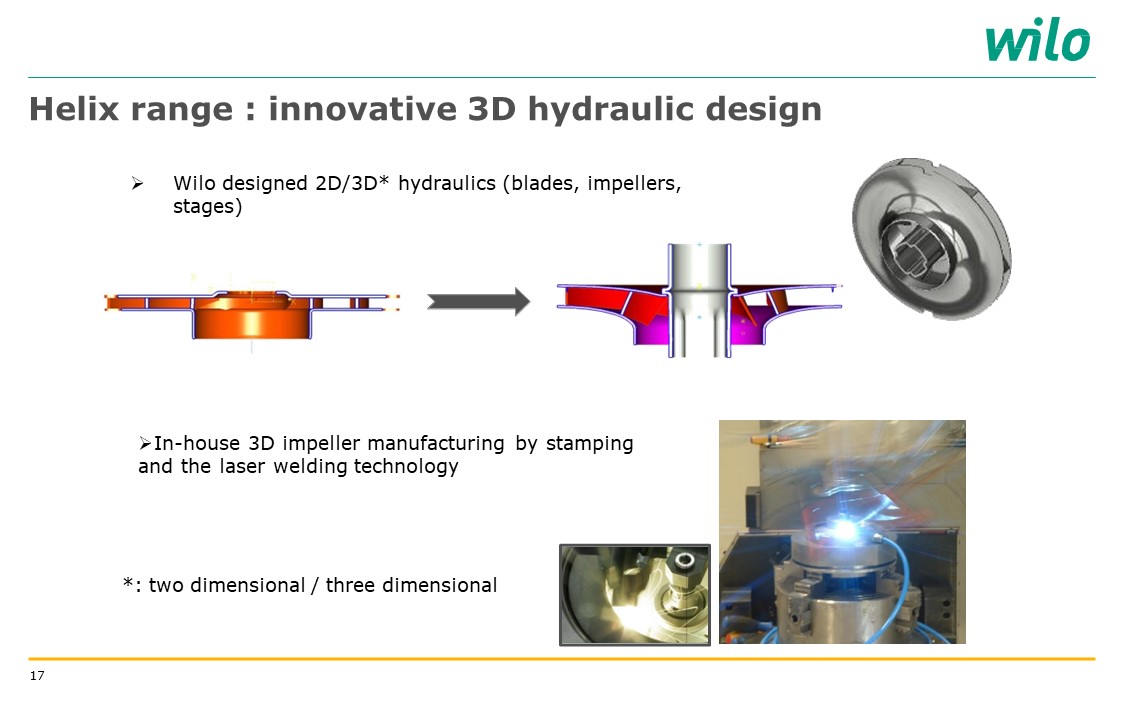

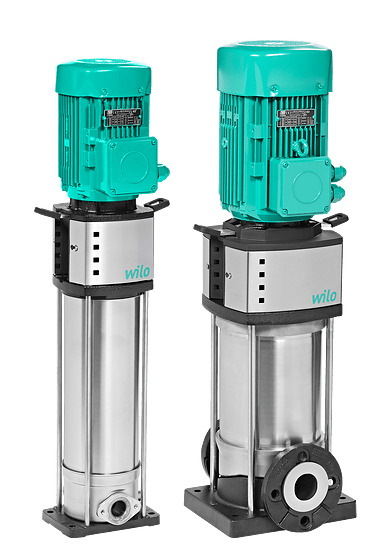

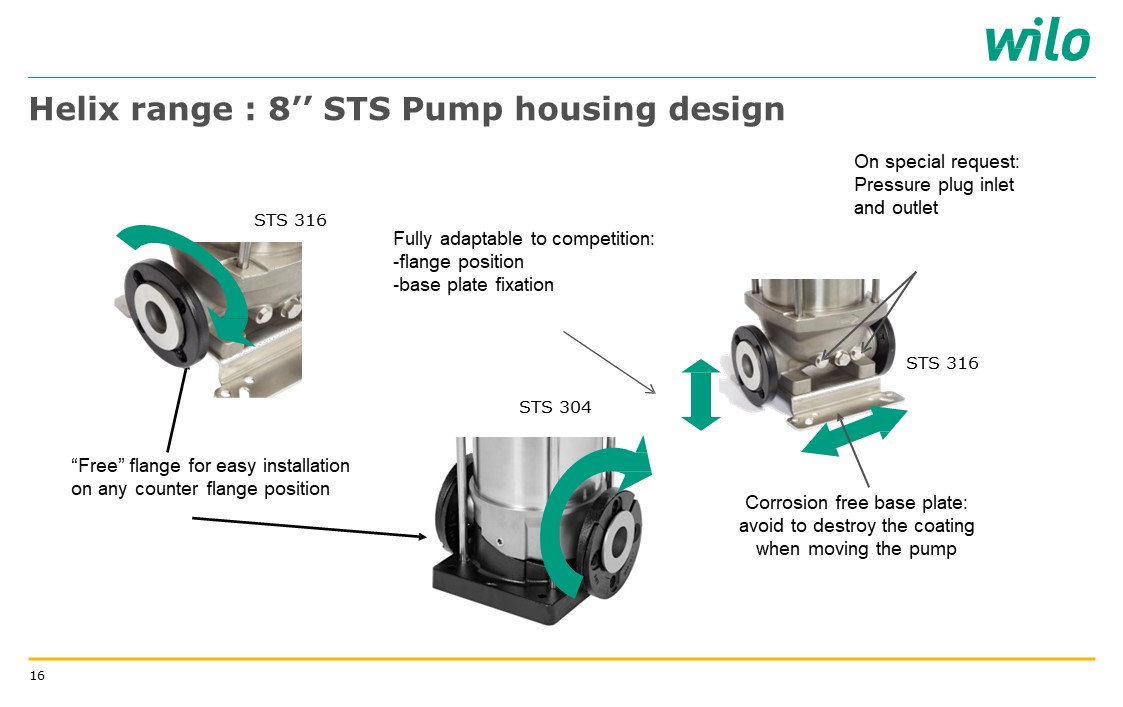

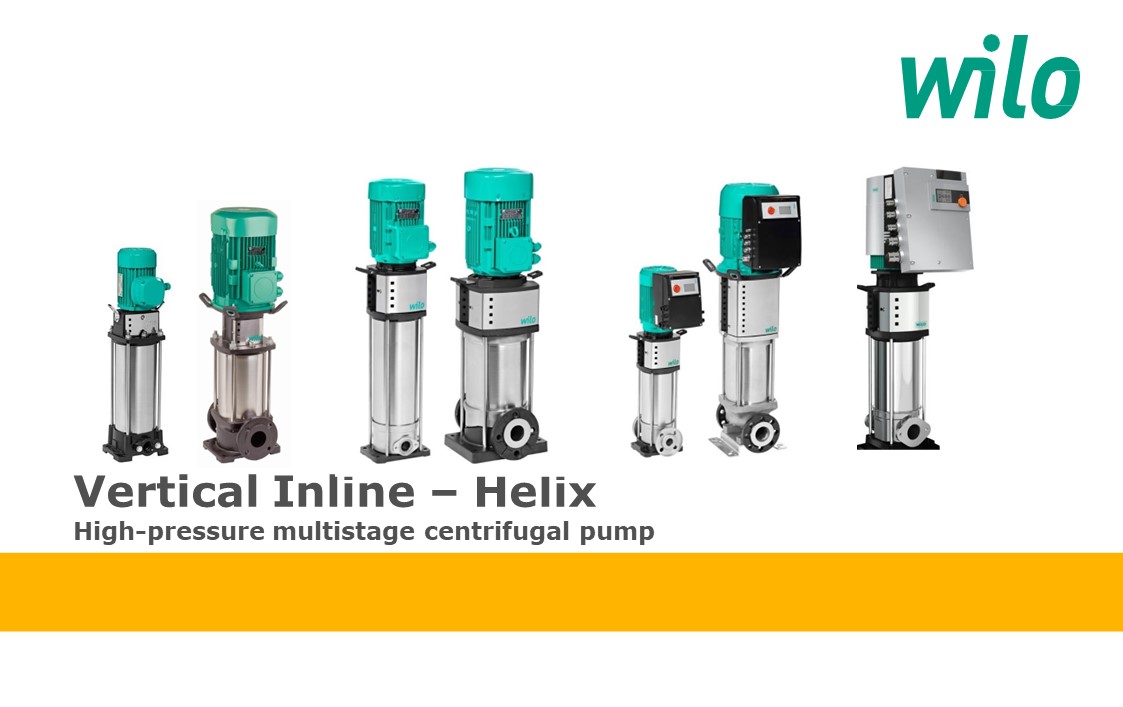

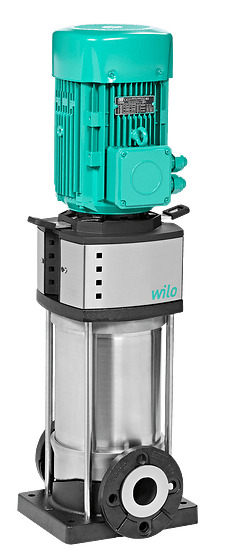

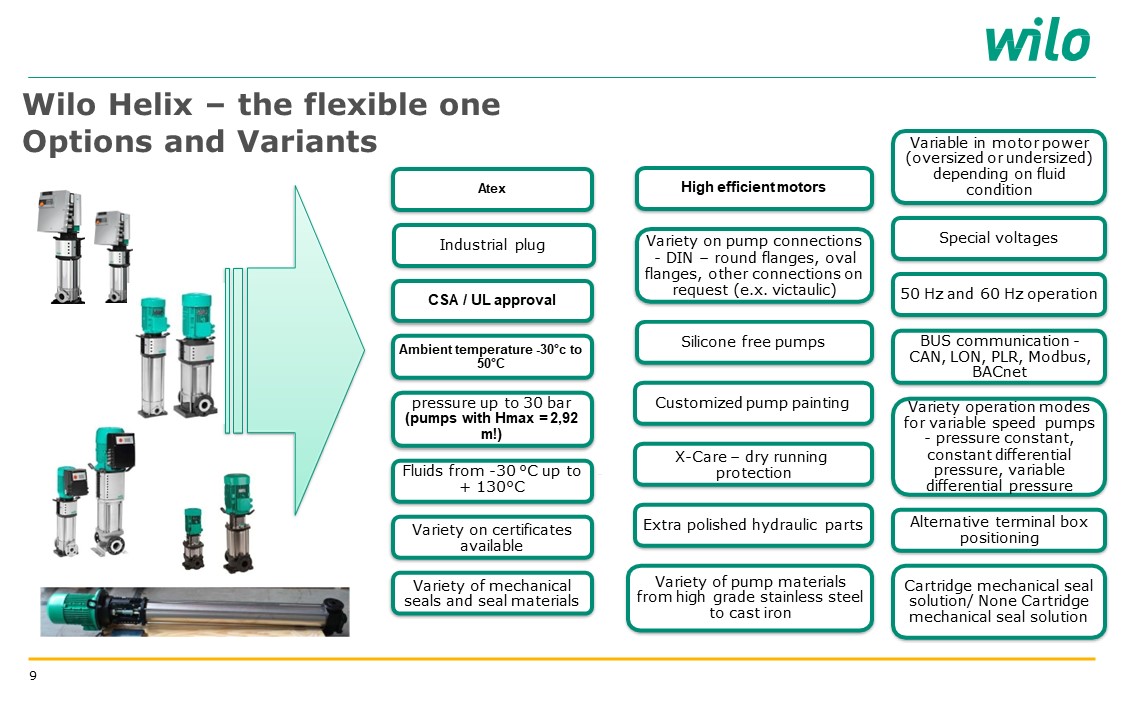

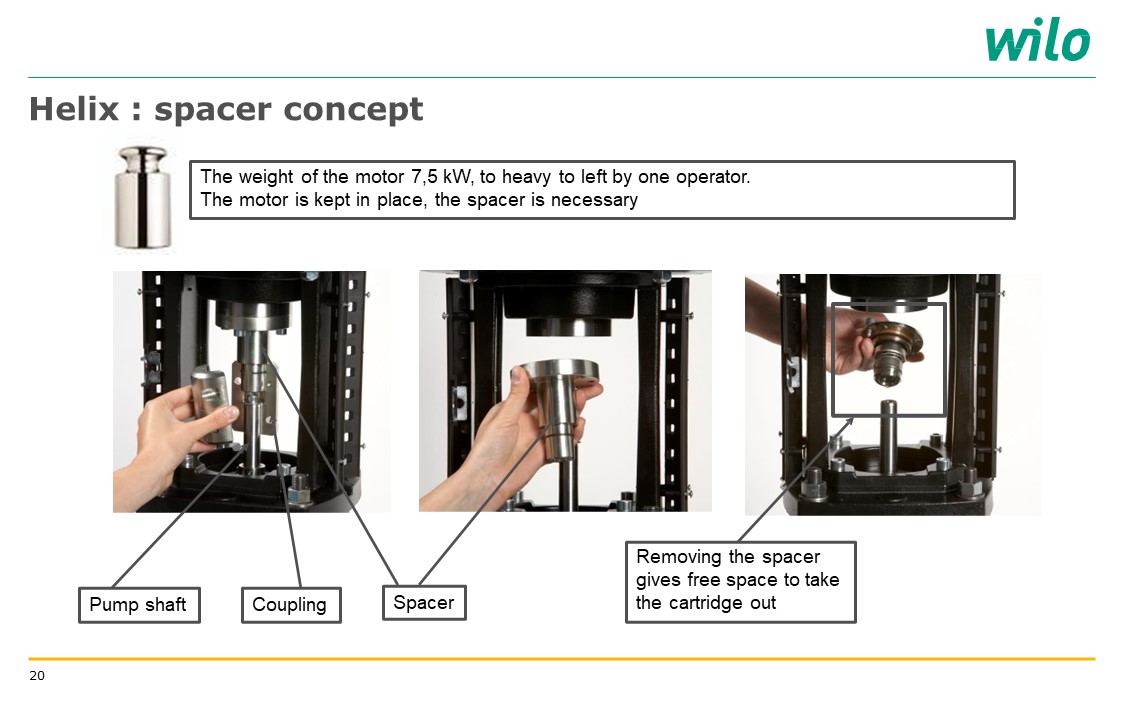

Wilo Helix Series
  • Why Helix series ?
    Atex
    Industrial Plug
    CSA / UL approval
    Ambient temperature -30°C to 50°C
    Pressure upto 30 bar
    Fluids from -30°C upto +130°C
    Variety on certificates available
  • Why Helix series ?
    Variety of mechanical seals and seal materials
    High Efficient Motors
    Variety on pump connections - DIN – round flanges, oval flanges, other connections on request (e.x. victaulic)
    Silicone free pumps
    Customised pump painting
    X-Care - dry running protection
    Extra polished hydraulic parts
    Variety of pump materials from high grade stainless steel to cast iron
  • Why Helix series ?
    Variable in motor power (oversized or undersized)depending on fluid condition
    Special Voltages
    50Hz and 60Hz operation
    BUS communication - CAN, LON, PLR, Modbus, BACnet
    Variety operation modes for variable speed pumps - pressure constant, constant differential pressure, variable differential pressure
    Alternative terminal box positioning

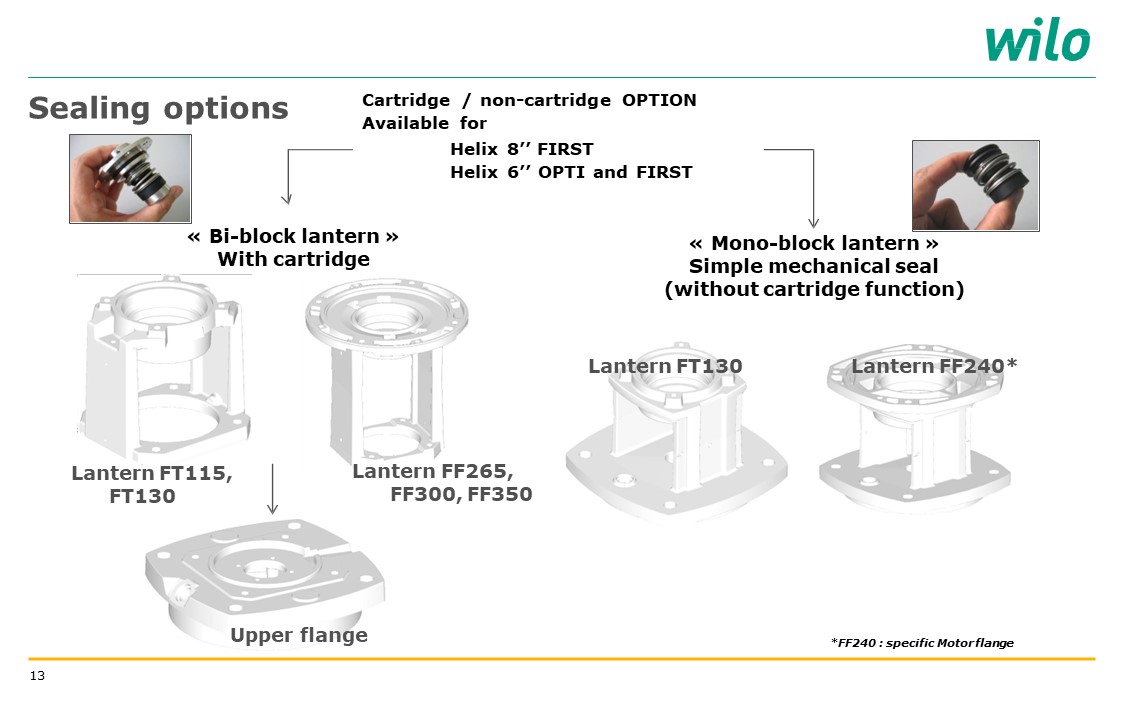

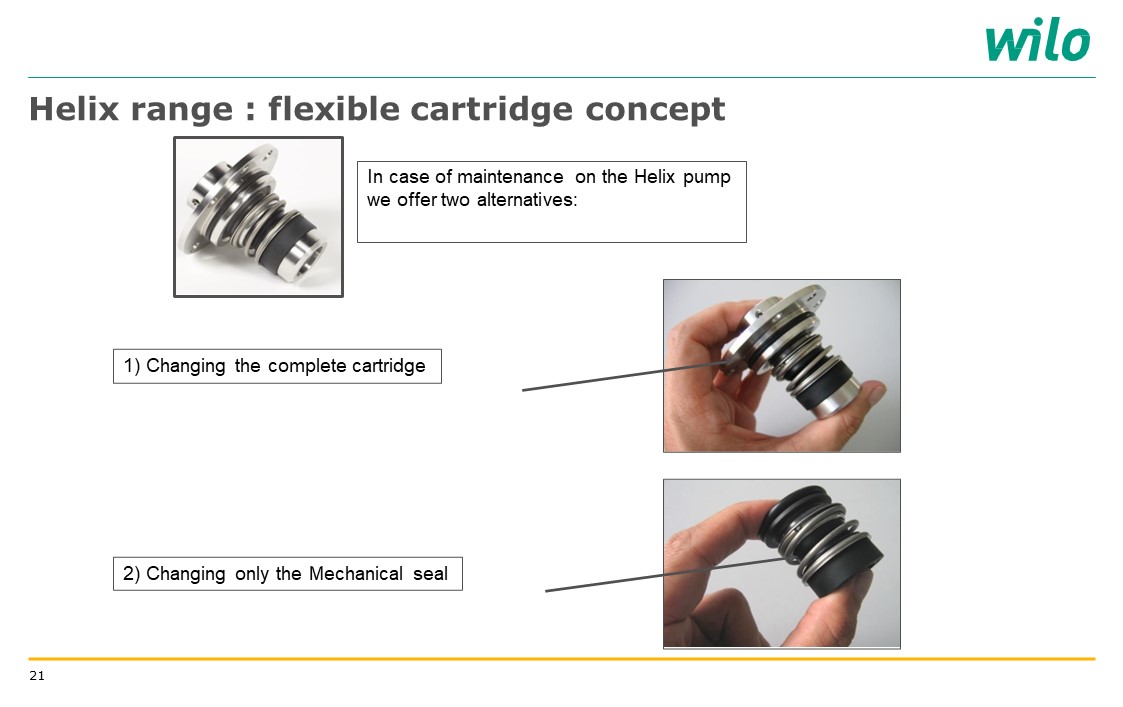

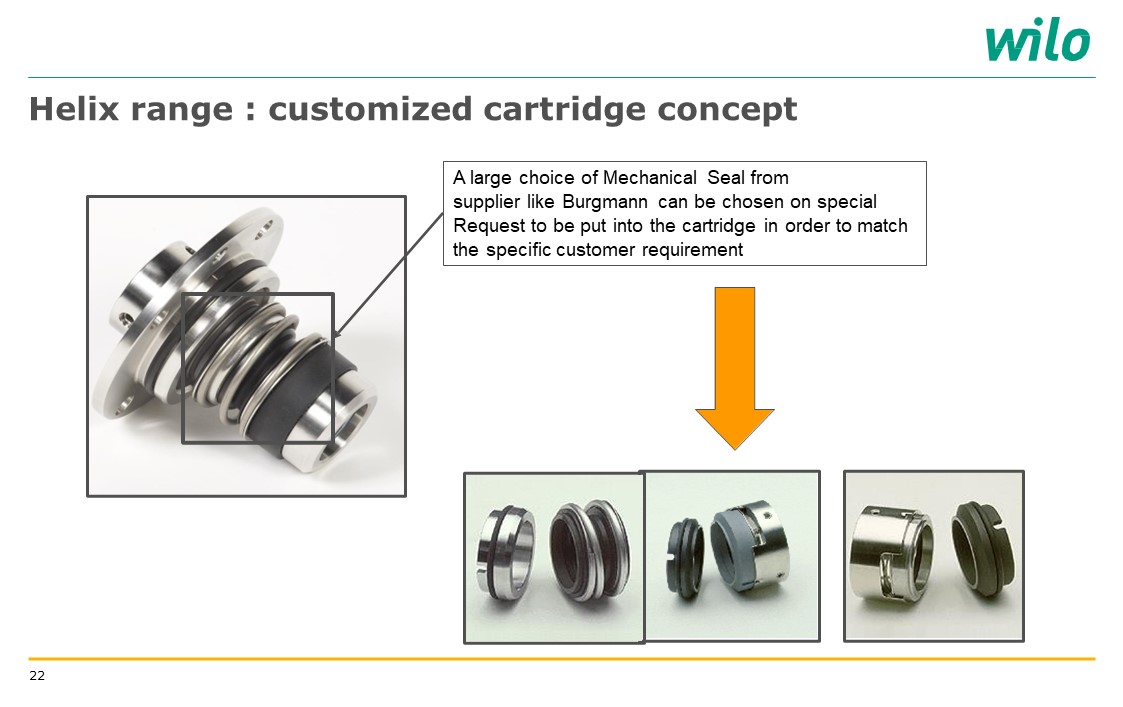

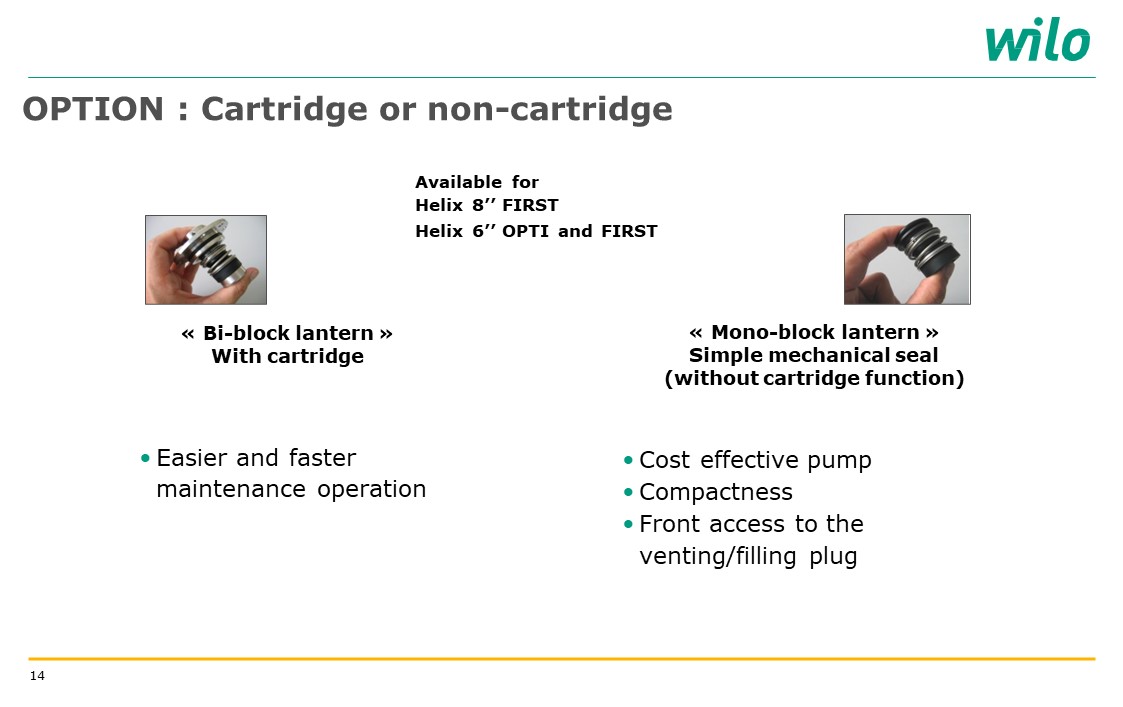

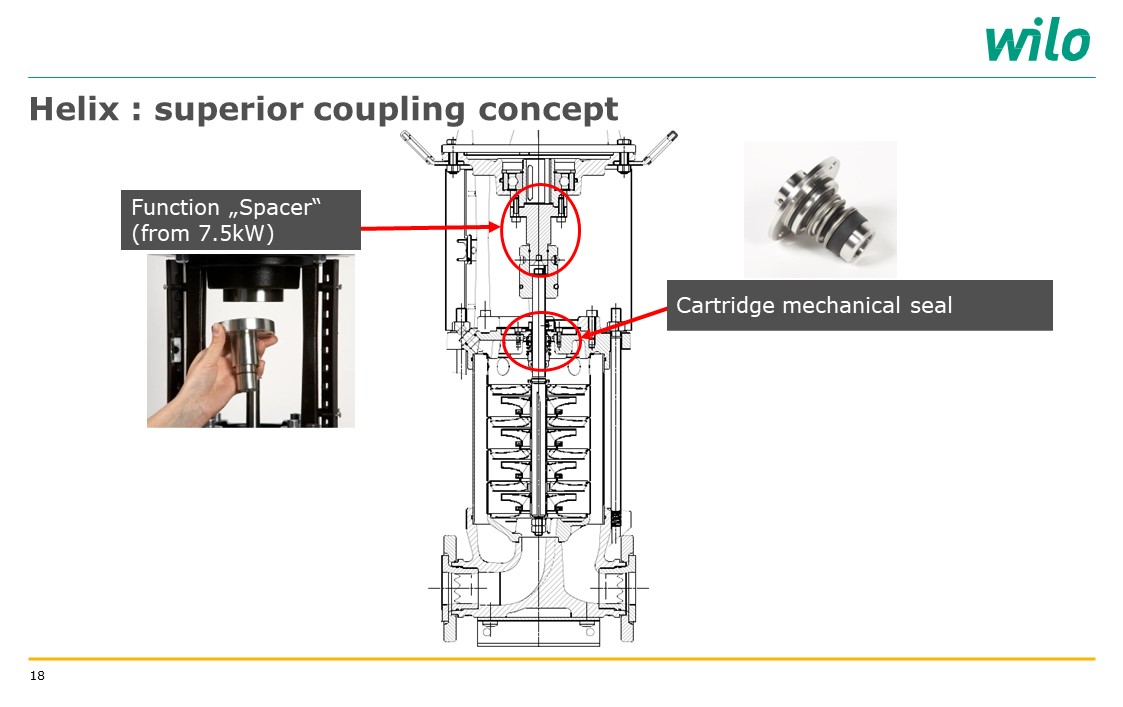

    Cartridge mechanical seal solution / None Cartridge mechanical seal solution

  View Solutions



Helix EXCEL
  • Technical Data
    Electrical Connection
    • 3~ 50 Hz : 400V +/-10%
    • 3~ 60 Hz : 380V +/-10%
    • 3~ 60 Hz : 480V +/-10%
    Fluid temperature range
    • Helix EXCEL 2 – 16 (EPDM) : -30 to 120 °C
    • Helix EXCEL 2 – 16 for aggressive media (FKM) : -15 to 90 °C
    • Helix EXCEL22 – 36 (EPDM) : -20 to 120 °C
    • Helix EXCEL22 – 36 for aggressive media (FKM) : -15 to 90 °C (-30 to 120 °C with EPDM gasket on request)
    Max. operating pressure 16/25 bar
    Protection class IP55
    Max. ambient temperature -15 to +50 °C (extended temperature ranges on request)
    Available versions
    • Helix EXCEL 2 – 16 : PN 16 with oval flanges, PN 25 with round flanges according to ISO 2531 and ISO 7005
    • Helix EXCEL 22 – 36 : PN 16 and PN 25 with round flanges according to ISO 2531 and ISO 7005
  • Design
    Non-self-priming, highly efficient fully stainless-steel high-pressure multistage centrifugal pump with EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2, in vertical design with integrated high-efficiency drive and in-line connections

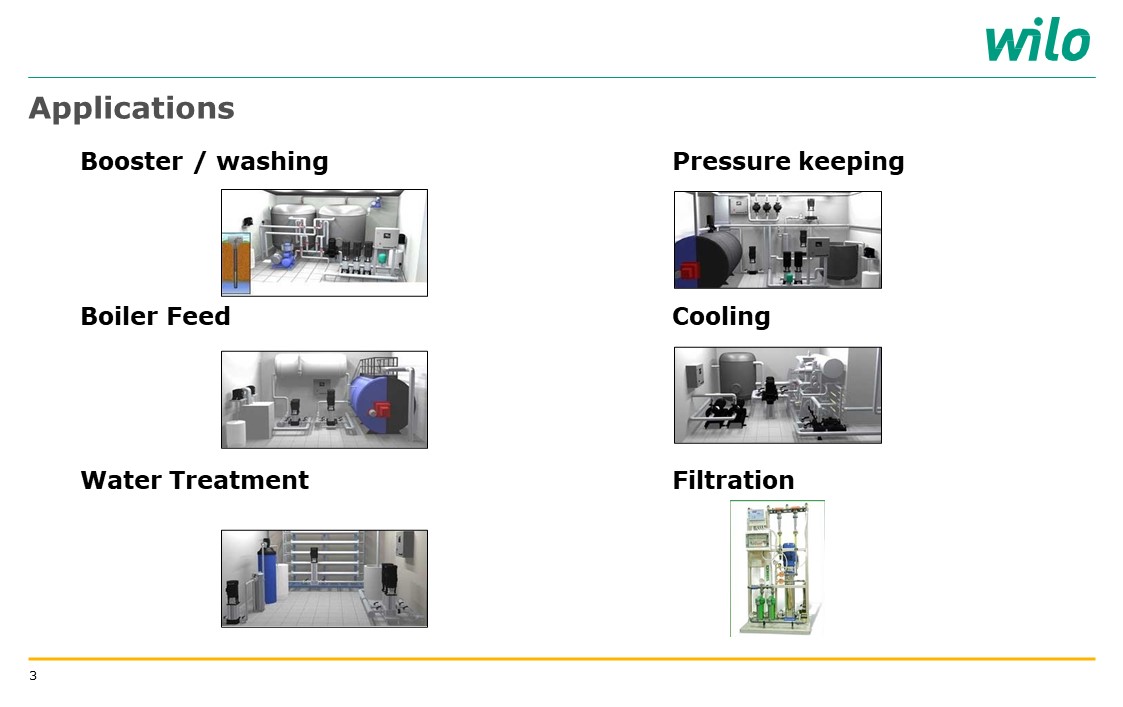

  • Application
    Water supply and pressure boosting
    Industrial circulation systems
    Process water
    Closed cooling circuits
    Washing systems
    Irrigation
  • Equipment/function
    Impellers, guide vanes and stage housings made of corrosion-resistant material

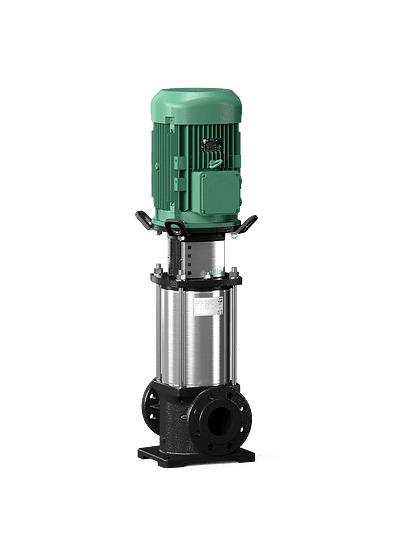

Helix FIRST V
  • Technical Data
    Electrical Connection 3~400 V (±10 %), 50 Hz
    • ≤ 4kW 230V/400V; Δ/Y
    • > 4kW 400V/690V; Δ/Y
    Fluid temperature range -20 to 120 °C
    Max. operating pressure 16, 25 or 30 bar
    Protection class IP55
    Max. ambient temperature -15 to +40 °C
    Available versions
    • Helix FIRST V 2 – 16 : PN 16 with oval flanges, PN 25/PN 40 with round flanges according to ISO 2531 and ISO 7005
    • Helix FIRSTV 22 – 52 : PN 16/PN 25/PN 40 with round flanges according to ISO 2531 and ISO 7005
  • Construction
    Pumps can be adapted to specific circumstances on request (e.g. motor protection, ATEX, extended ambient temperature range).
  • Design
    Non-self-priming, high-efficiency multistage high-pressure centrifugal pump in vertical design with in-line connections
  • Application
    Water distribution and pressure boosting
    Industrial circulation systems
    Process water
    Closed cooling circuits
    Fire extinguishing systems
    Washing systems
    Irrigation
  • Equipment/function
    Corrosion-resistant impellers, guide vanes and stage housings

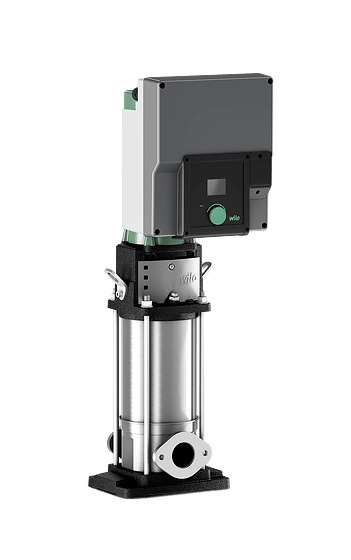

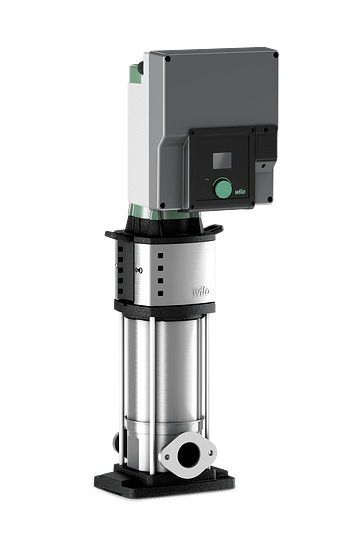

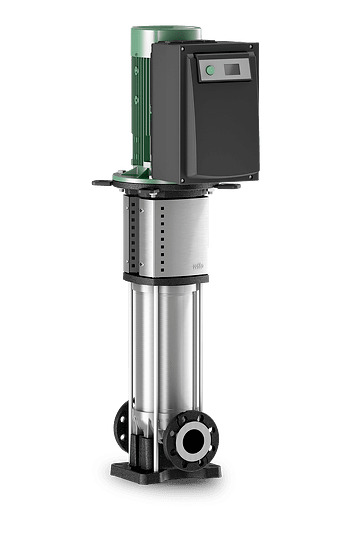

Helix 2.0-VE
Helix 2.0-VE (Cartridge)
Helix 2.0-VE
  • Technical Data
    Electrical Connection
    • 3~ 380V - 440V (+/- 10%) 50 Hz/60 Hz
    • TN, TT, IT
    Fluid temperature range
    • Helix 2.0-VE 2 – 16 (EPDM) : -30 to 120 °C (130 °C on request)
    • Helix 2.0-VE 2 – 16 for aggressive media (FKM) : -15 to 90 °C
    • Helix 2.0-VE – 52 (EPDM) : -20 to 120 °C (130 °C on request)
    • Helix 2.0-VE 22 – 52 for aggressive media (FKM): -15 to 90 °C (-30 to 120 °C with EPDM gasket on request)
    Max. operating pressure 16/25 bar
    Protection class IP55
    Max. ambient temperature +50 °C
    Available versions
    • Helix 2.0-VE 2 – 16 : PN 16 with oval flanges, PN 25 with round flanges according to ISO 2531 and ISO 7005 (Victaulic coupling on request)
    • Helix 2.0-VE 22 – 52 : PN 16 and PN 25 with round flanges according to ISO 2531 and ISO 7005
  • Design
    Highly efficient, non-self-priming high-pressure multistage centrifugal pump in vertical design with in-line connections, equipped with electronically controlled EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2.
  • Application
    Water supply and pressure boosting
    Industrial circulation systems
    Process water
    Closed cooling circuits
    Heating
    Washing systems
    Irrigation
  • Equipment/function
    2” colored LCD display
    Wilo Green Button Technology and soft button with return function for menu navigation and pump setting
    Green LED indicates pump status
    Blue LED indicates that pump is influenced externally via an interface
    Impellers, guide vanes and stage housings made of corrosion-resistant material
  • Operating modes
    Constant pressure p-c
    Constant differential pressure Δp-c
    Variable differential pressure Δp-v
    Constant speed n-c
    PID Control
  • Analog Input
    IN (AI 1) : Input sensor signal 4-20 mA, 0-10 V, 0-20 mA or 2-10 V
    IN (AI 2) : Input setpoint 0-20 mA, 0-10 V, 4-20 mA, 2-10 V or input sensor signal 4-20 mA, 0-10 V, 0-20 mA or 2-10 V
  • Digital input IN (DI 1)
    Extern off
    Lack of water detection by binary input
  • Functions
    Max. pressure limit detection
    Min. pressure limit detection
    Lack of water detection by suction sensor
    Zero flow test (open loop)
    No-Flow Stop (closed loop)
    Dry running detection
    Volume flow calculation by using differential pressure sensor
    Pump kick
    Error and warning codes
    Overload Protection
    Access Lock
    Plug-in position for Wilo CIF-modules PLR, LON, BACnet MS/TP, Modbus RTU, CANopen, Ethernet Multi-protocol (Modbus TCP, BACnet/IP) for connection to the building automation
  • Dual pump management (2 x single pumps)
    Main/standby operation
    Pump cycling main/standby operation after 24 hours or automatic fault-actuated switchover
    Wired connection via Wilo Net

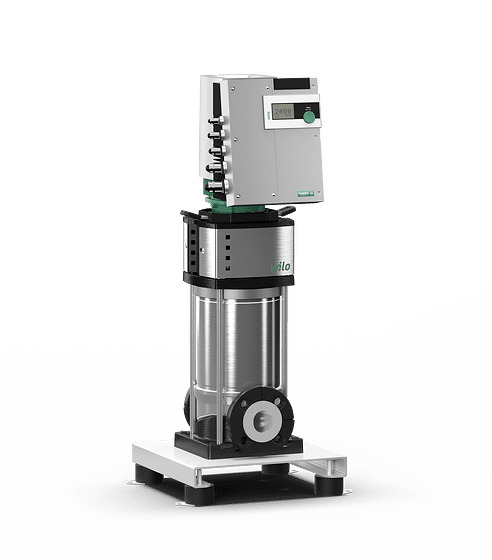

Helix VE
  • Technical Data
    Electrical Connection
    • 3~ 50Hz : 400V +/-10%
    • 3~ 60Hz : 380V +/-10%
    • 3~ 60Hz : 480V +/-10%
    Fluid temperature range
    • Helix VE 2 – 16 (EPDM) : -30 to 120 °C (130 °C on request)
    • Helix VE 2 – 16 for aggressive media (FKM) : -15 to 90 °C
    • Helix VE22 – 52 (EPDM) : -20 to 120 °C (130 °C on request)
    • Helix VE22 – 52 for aggressive media (FKM) : -15 to 90 °C (-30 to 120 °C with EPDM gasket on request)
    Max. operating pressure 16/25 bar
    Protection class IP55
    Max. ambient temperature +40 °C (extended temperature ranges on request)
    Available versions
    • Helix VE 2 – 16 : PN 16 with oval flanges, PN 25 with round flanges according to ISO 2531 and ISO 7005 (Victaulic coupling on request)
    • Helix VE 22 – 52 : PN 16 and PN 25 with round flanges according to ISO 2531 and ISO 7005
  • Design
    Electronically controlled, non-self-priming high-pressure multistage centrifugal pump in vertical design, with in-line connections
  • Application
    Water supply and pressure boosting
    Industrial circulation systems
    Process water
    Closed cooling circuits
    Fire extinguishing systems
    Washing systems
    Irrigation
  • Equipment/function
    Impellers, guide vanes and stage housings made of corrosion-resistant material


Helix V
  • Technical Data
    Electrical Connection 3~400 V (±10 %), 50 Hz
    • ≤ 4kW 230V/400V; Δ/Y
    • > 4kW 400V/690V; Δ/Y
    Fluid temperature range
    • Helix V 2 – 16 (EPDM) : -30 to 120 °C (130 °C on request)
    • Helix V 2 – 16 for aggressive media (FKM) : -15 to 90 °C
    • Helix V22 – 52 (EPDM) : -20 to 120 °C (130 °C on request)
    • Helix V22 – 52 for aggressive media (FKM) : -15 to 90 °C
    Max. operating pressure 16/25/30 bar
    Protection class IP55
    Max. ambient temperature +40 °C (extended temperature ranges on request)
    Available versions
    • Helix V 2 – 16: PN 16 with oval flanges, PN 25/PN 40 with round flanges according to ISO 2531 and ISO 7005 (Victaulic coupling on request)
    • Helix V 22 – 52: PN 16/PN 25/PN 40 with round flanges according to ISO 2531 and ISO 7005
  • Design
    Non-self-priming, high-efficiency multistage high-pressure centrifugal pump in vertical design with in-line connections
  • Application
    Water supply and pressure boosting
    Industrial circulation systems
    Process water
    Closed cooling circuits
    Fire extinguishing systems
    Washing systems
    Irrigation
  • Equipment/function
    Corrosion-resistant impellers, guide vanes and stage housings


Helix VF (VdS)
  • Technical Data
    Basis of VdS approval 3~400 V (±10 %), 50 Hz
    • VdS 2344:2014-07
    • VdS 2100-07:2013-05
    The VdS approval No. is P 418007
  • Construction
    The non self-priming high-pressure multistage centrifugal pump has a particularly compact overall design. The pump shaft and the motor shaft of the IEC standard motor are connected by means of a clamp coupling. A separate lantern
    Roller bearing ensures optimum admission of axial thrusts.
    Intermediate bearings in the hydraulics and corrosion-resistant shaft due to stainless steel sleeve ensure a long service life. Special, permanently attached lifting eyes enable easy pump installation.
    The marking of the pump is non-detachable, non-flammable and permanent.
  • Design
    Highly efficient high-pressure multistage centrifugal pump in vertical design with in-line connections, VdS certified for use as sprinkler pump in stationary water extinguishing systems.
  • Equipment/function
    Use of different pump housing connections is possible which is available on Helix standard pump ranges. The material of pump housing shall have the elongation at break at least 15%.
    Wilo-Helix FIRST pumps are VdS certified up to 110 m delivery head. These pump versions are not allowed to exceed the defined delivery head and the allowable pressure 12 bar. Wilo-Helix FIRST pump housing is made of cast iron GJL250. VdS requires JL1040 or at least equivalent material as sufficient.
    Wilo-Helix VF and Wilo-Helix FIRST VF fulfil the VdS requirement of non – rusting metal with a melting point > 800 °C for pump shafts, shaft protection sleeves, impellers, impeller mounting components and wear rings.
    The connection of pumps and motors shall be made separately by a coupling. The power provided by the motor must be sufficient for the H(Q) curve. Overload values or values for short time operation are not allowed on VdS certified Helix series. The torque of the drive motors shall be greater as the counter torque exerted by the pump all the way from standstill to rated speed. The motor power and overload is found at power peak 5% and at 16m NPSH.
    Qzul means Q zulässig. This is a German description for permissible delivery flow. The duty point must not be at the right of this limit. When delivering at 1.2 times the permissible delivery flow, an NPSHR of 5.5 m shall not be exceeded.
    The formula used for Qzul -
    • Q4.5mNPSH times 1.2 must not exceed Q5.5m NPSH, in this case Qzul = Q4.5m NPSH.
    • If the result exceed the value of Q5.5m NPSH then Qzul is Q5.5m NPSH/1.2.
    Wilo SE must conduct a pressure test with each pump casing in finished condition or in assembled condition. Each Helix VF and Helix FIRST VF is to test in assembled condition -
    • Test medium - water
    • Test pressure - 1.5 times allowable pressure
    • No signs for breaks/ cracks or inadmissible plastic deformation is visible during and after the test

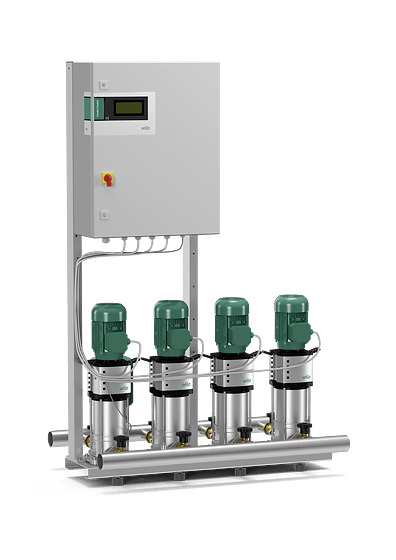

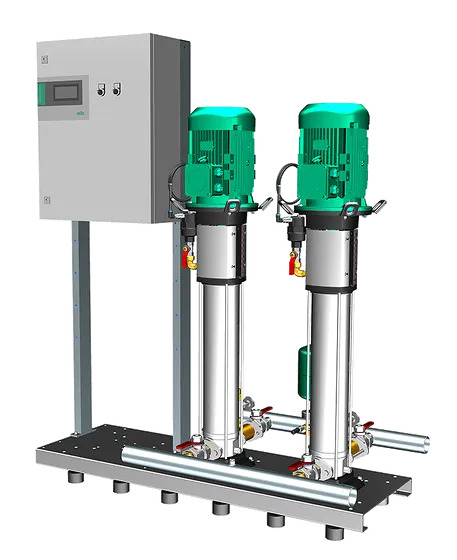

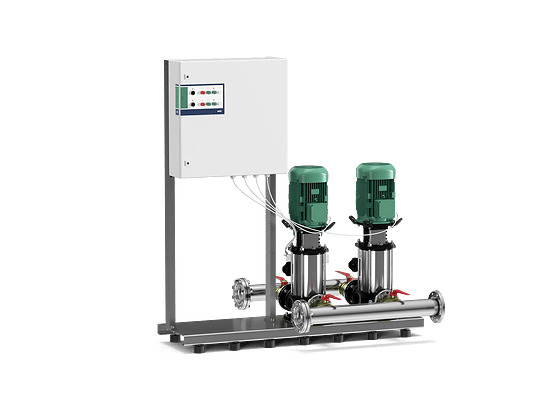

Comfort CO-/COR-Helix V/CC
  • Technical Data
    Mains Connection3~230V/400V (±10 %), 50 Hz
    Max. fluid temperature 50 °C (70 °C optional)
    Operating pressure 16 bar (25 bar optional)
    Inlet pressure 10 bar
    Nominal connection diameters
    • on discharge side R 1&1frac2; - DN 200
    • on the intake side R 1&1frac2;" - DN 200
    Rated speed 2850 rpm
    Fuse protection on mains side AC 3 according to motor power and EVU regulations
    Approved fluids (other fluids on request) -
    Note on fluids : Approved fluids are generally water mixtures which do not chemically or mechanically attack the materials used and do not contain either abrasive or fibrous matter
    • Drinking water and domestic hot water
    • Cooling water
    • Fire water
  • Construction
    Base frame : galvanised steel, with height-adjustable vibration absorbers for comprehensive insulation against structure-borne noise; other versions on request
    Pipework : complete pipework made of stainless steel, suitable for the connection of all piping materials used; the pipework is dimensioned according to the overall hydraulic performance of the pressure boosting system
    Pumps : 2 to 6 pumps switched in parallel of the Helix V 4 to Helix V 52 series; all parts which come into contact with the fluid are made of stainless steel; other versions on request. KTW/WRAS/ACS approval for all parts that come in contact with the fluid
    Valves : each pump is fitted on the suction and pressure side with a shut-off valve or a shut-off flap with DVGW approval mark and on the pressure side with a DVGW/KTW-approved non-return valve
    Diaphragm pressure vessel : 8 l/PN16 arranged on the discharge side with a diaphragm made of butyl rubber, with DVGW/KTW approval, completely safe in accordance with food safety laws, for testing and inspection purposes, with drain and throughflow valve with DVGW/KTW approval in accordance with DIN 4807
    Pressure sensor: 4 to 20 mA, located on the discharge side for controlling the central Comfort Controller CC
    Pressure indication : pressure gauge (∅ 63 mm) arranged on the discharge side; additional digital indication of the discharge pressure on the alphanumeric touchscreen on the Comfort Controller
    Control device/controller : The system is equipped with a Comfort Controller CC as standard; COR additionally with a frequency converter
  • Design
    Highly efficient, ready for connection water-supply unit (non self-priming) with 2 to 6 vertically arranged glanded stainless steel high-pressure multistage centrifugal pumps from the Helix V series switched in parallel, including Comfort Controller CC (available with and without frequency converter)
  • Application
    Fully automatic water supply and pressure boosting in residential, commercial and public buildings, hotels, hospitals, department stores and for industrial systems.
    Pumping of drinking water and process water, cooling water, fire water (apart from fire-extinguishing systems in accordance with DIN 14462 and with the approval of the local fire safety authorities) or other types of industrial water that do not attack the materials either chemically or mechanically and do not contain abrasive or long-fibre constituents.
  • Equipment/function
    2-6 pumps per system of the Helix V 4 to Helix V 52 series with IE2 standard motor, including 7.5 kW and larger IE3 standard motor (optional for smaller motor power)
    Automatic pump control via Comfort Controller CC. The COR systems are additionally equipped with a frequency converter in the switch cabinet.
    Parts that come in contact with the fluid are corrosion-resistant
    Base frame made of galvanised steel, with height-adjustable vibration absorbers for insulation against structure-borne noise
    Pipework made of 1.4404 stainless steel
    Shut-off valve on the suction and pressure sides of each pump
    Non-return valve on the pressure side of each pump
    Diaphragm pressure vessel 8 l, PN16, pressure side
    Pressure sensor, pressure side
    Pressure gauge, pressure side
    Optional low-water cut-out switchgear with pressure gauge, suction side

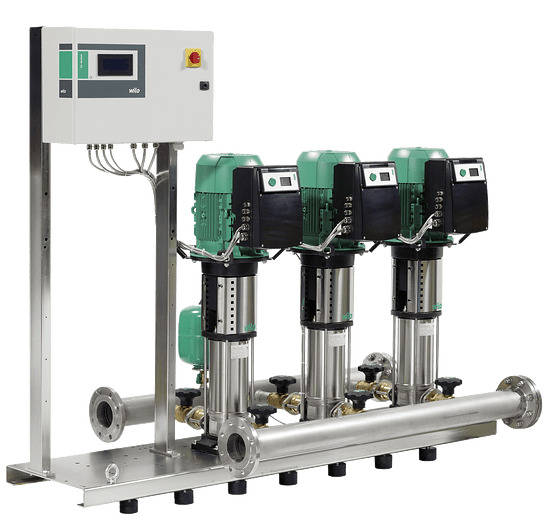

Comfort COR Helix VE/CCe
  • Technical Data
    Mains Connection3~400V (±10%), 50 Hz; 3~380V/440V (±10%), 60 Hz
    Max. fluid temperature 50 °C (70 °C optional)
    Ambient temperature max. 40 °C
    Operating pressure 16 bar (25 bar optional)
    Inlet pressure 10 bar
    Nominal connection diameters
    • on discharge side R 1&1frac2; - DN 125
    • on the intake side R 1&1frac2;" - DN 125
    Speed range 1500-3770 rpm
    Protection class IP54
    Fuse protection on mains side A, AC 3 according to motor power and EVU regulations
    Approved fluids (other fluids on request) -
    Note on fluids : Approved fluids are generally waters which do not attack the materials used, neither chemically nor mechanically, and do not contain any abrasive or long-fibre constituents. System in accordance with DIN 1988 (EN 806)
    • Drinking water and domestic hot water
    • Cooling water
    • Fire water
  • Construction
    Base frame : galvanised steel, with height-adjustable vibration absorbers for comprehensive insulation against structure-borne noise; other versions on request
    Pipework : complete pipework made of stainless steel, suitable for the connection of all piping materials used; the pipework is dimensioned according to the overall hydraulic performance of the pressure boosting system
    Pumps : 2 to 6 pumps of the Helix VE 4.., 6.., 10.., 16.. series are used, which are connected in parallel. The air-cooled frequency converters mounted on the pump motor enable infinitely variable control between 25 Hz and a maximum of 60 Hz for all pumps of this series. All parts which come in contact with fluid are made of stainless steel for the Helix VE 4.., 6.., 10.., 16..; other versions on request. KTW/WRAS/ACS approval for all parts that come in contact with the fluid
    Valves : With the Helix VE 4.., 6.., 10.., 16.. series, every pump is fitted on the suction and pressure side with a check valve with DVGW approval mark and on the pressure side with a non-return valve with DVGW/KTW approval
    Diaphragm pressure vessel : 8 l/PN16 to be arranged on the discharge side. With a diaphragm made of butyl rubber, with DVGW/KTW approval, completely safe in accordance with food safety laws for testing and inspection purposes, with drain and throughflow valve with DVGW/KTW approval in accordance with DIN 4807.
    Pressure sensor: 4 to 20 mA, located on the discharge side for controlling the central Comfort Controller CCe
    Pressure indication : pressure gauge (ø 63 mm) arranged on the discharge side; additional digital indication of the discharge pressure on the alphanumeric touchscreen on the Comfort Controller
    Control device/controller : The system is equipped with a Comfort Controller CCe as standard
  • Design
    Highly efficient water-supply unit ready for connection (non self-priming). With 2 to 6 vertically arranged Helix VE series stainless steel high-pressure centrifugal pumps in glanded version switched in parallel; every pump is equipped with an integrated air-cooled frequency converter, including Comfort Controller CCe
  • Application
    Fully automatic water supply and pressure boosting in residential, commercial and public buildings, hotels, hospitals, department stores and for industrial systems.
    Pumping of drinking water, process water, cooling water, fire water (apart from fire-extinguishing systems in accordance with DIN 14462 and with the approval of the local fire safety authorities) or other types of industrial water that do not attack the materials either chemically or mechanically and do not contain abrasive or long-fibre constituents.
  • Equipment/function
    2-6 pumps per system of the Helix VE 4 to Helix VE 16 series, with IE4-equivalent standard motors and variable auto control with integrated frequency converter for each pump
    Automatic pump control via Comfort Controller CCe
    Parts that come in contact with the fluid are corrosion-resistant
    Base frame made of galvanised steel, with height-adjustable vibration absorbers for insulation against structure-borne noise
    Shut-off valve on the suction and pressure sides of each pump
    Non-return valve on the pressure side of each pump
    Diaphragm pressure vessel 8 l, PN16, pressure side
    Pressure sensor, pressure side
    Pressure gauge, pressure side
    Optional low-water cut-out switchgear with pressure gauge, suction side

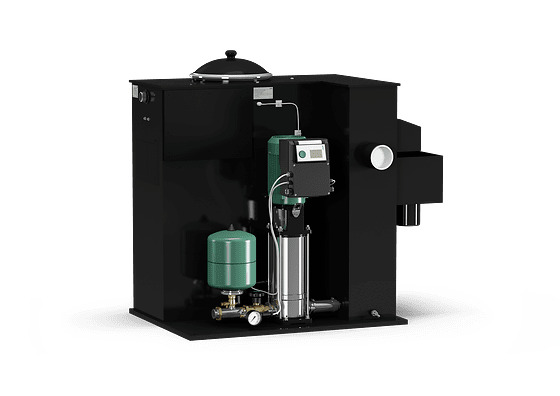

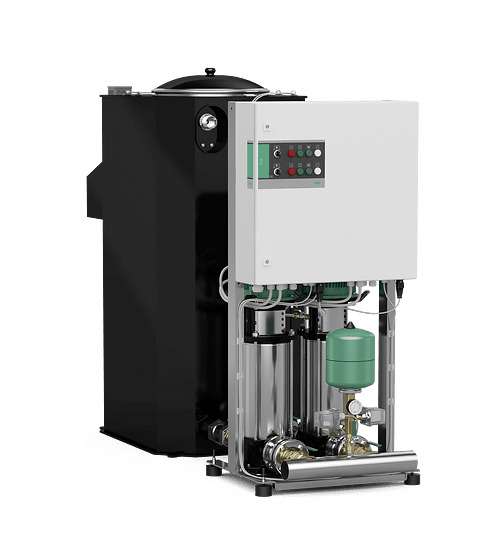

Comfort-Vario COR/T-1 Helix VE/GE
  • Technical Data
    Mains Connection3~400V (±10%), 50 Hz; 3~380V/440V (±10%), 60 Hz
    Max. fluid temperature 40 °C
    Max. Ambient temperature 40 °C
    Operating pressure 16 bar
    Inlet pressure 6 bar
    Rated pressure stages 6/10/16 bar
    Nominal connection diameters
    • on discharge side Rp 1 &1frac4;"
    • on inlet side Rp 1 &1frac4;"
    Speed range 1500-3770 rpm
    Switching capacity P2 max. at max. 10 A = 4 kW
    Approved fluids (other fluids on request) -
    Note regarding fluids : Approved fluids are generally waters which do not attack the materials used, neither chemically nor mechanically, and do not contain any abrasive or long-fibre constituents.
    • Pure water without settling sediments
    • Process water, cold water, cooling water and rainwater
    • Drinking water
    • Firefighting water
  • Construction
    Connection-ready water-supply unit, mounted on a PE baseplate, complete pipework, including all necessary valves and shut-off valves (except for inlet-side shut-off device), pressure sensor kit, glanded version (Helix V series) stainless steel high-pressure multistage centrifugal pump and CE control device, mounted, wired and ready for connection; trip electronics in low-water cut-out switchgear fitted in the control device
    Diaphragm pressure vessel: 8 l/PN 16 located on the discharge side with a butyl rubber diaphragm, completely safe in accordance with food safety laws; for testing and inspection purposes, with a shut-off device, with drain and flow device according to DIN 4807
    Control device: the system is standard-equipped with a CE Economy Controller
  • Design
    Water-supply unit with system separation and a non-self-priming high-pressure multistage centrifugal pump
  • Application
    Fully automatic water supply including break tank for indirect connection to the public water supply network
    Pumping of drinking water and process water, cooling water, fire water (apart from fire-extinguishing systems in accordance with DIN 14462 and with the approval of the local fire safety authorities) or other types of industrial water that do not attack the materials either chemically or mechanically and do not contain abrasive or long-fibre constituents.
  • Equipment/function
    1 Helix V series pump
    Maximum stage number : 14
    PE break tank, atmospherically ventilated (150 l)
    Components that come in contact with fluid are corrosion-resistant
    Shut-off device, on the pressure side
    Non-return valve, on suction side
    Break tank including float valve and float switch (low-water signal transmitter)
    Diaphragm pressure vessel 8 l, PN 16, on the pressure side
    Low-water cut-out switchgear

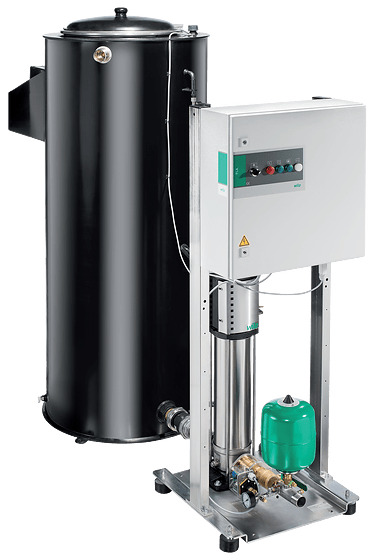

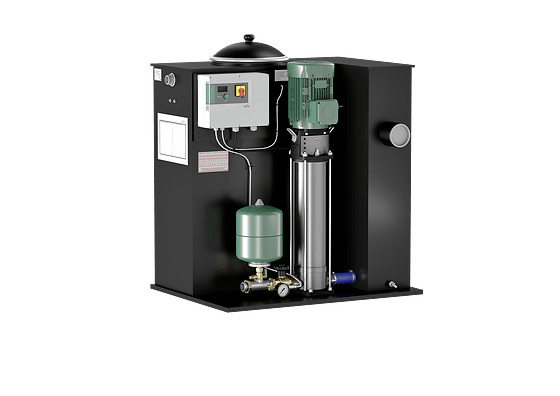

Economy CO/T-1 Helix V
  • Technical Data
    Mains Connection3~230V/400V (±10%), 50 Hz (other versions on request)
    Max. fluid temperature 40 °C
    Max. Ambient temperature 40 °C
    Operating pressure 16 bar
    Inlet pressure 6 bar
    Rated pressure stages 6/10/16 bar
    Nominal connection diameters
    • on discharge side Rp 1 &1frac4;"
    • on inlet side Rp 1 &1frac4;"
    Rated speed 2900 rpm
    Protection class IP54
    Switching capacity P2 max. at max. 10 A = 4 kW (with > 4 kW downstream electromechanical power section)
    Fuse protection on mains side AC 3 according to motor power and EVU regulations
    Approved fluids (other fluids on request) -
    Note regarding fluids : Approved fluids are generally waters which do not attack the materials used, neither chemically nor mechanically, and do not contain any abrasive or long-fibre constituents.
    • Pure water without settling sediments
    • Process water, cold water, cooling water and rainwater
    • Drinking water
    • Firefighting water
  • Construction
    Water-supply unit ready for connection, built on PE baseplate, complete pipework, including all necessary valves and shut-off devices (excluding shut-off device on the inlet side), pressure sensor kit, stainless steel high-pressure multistage centrifugal pump in the glanded version (Helix V series) and EC controller mounted and wired ready for connection; trip electronics for low-water cut-out switchgear available in the control device
    Diaphragm pressure vessel: 8 l/PN 16 located on the discharge side with a butyl rubber diaphragm, completely safe in accordance with food safety laws; for testing and inspection purposes, with a shut-off device, with drain and flow device according to DIN 4807
    Controller : the system is standard-equipped with an EC-controller
    Pressure sensor : 4 to 20 mA, on the discharge side for activating the central EC-controller
    Pressure indication : Pressure gauge on the discharge side; additional digital display of the discharge pressure in the alphanumeric display of the EC controller
  • Design
    Water-supply unit with system separation and a non-self-priming high-pressure multistage centrifugal pump
  • Application
    Fully automatic water supply including break tank for indirect connection to the public water supply network
    Pumping of drinking water and process water, cooling water, fire water (apart from fire-extinguishing systems in accordance with DIN 14462 and with the approval of the local fire safety authorities) or other types of industrial water that do not attack the materials either chemically or mechanically and do not contain abrasive or long-fibre constituents.
  • Equipment/function
    1 Helix V series pump
    Maximum stage number : 14
    PE break tank, atmospherically ventilated (150 l)
    Shut-off valve, on the discharge side
    Non-return valve, on suction side
    Break tank including float valve and float switch (low-water signal transmitter)
    Diaphragm pressure vessel 8 l, PN 16, on the discharge side
    Low-water cut-out switchgear
    EC-control with IP54 plastic housing, consisting of an internal power supply unit, microprocessor, analogue and digital input and output modules

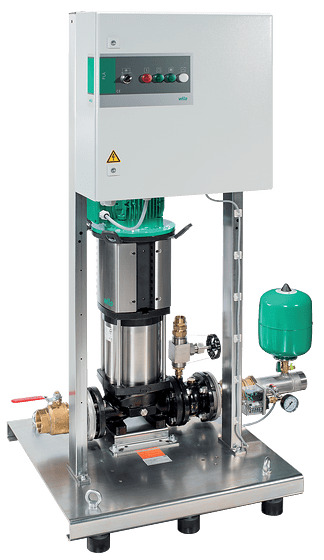

FLA Compact-1 Helix V
  • Technical Data
    Mains Connection3~400V 50 Hz
    Max. fluid temperature 50 °C
    Rated pressure 16 bar
    Operating pressure up to 16 bar
    Inlet pressure from break tank < 1 bar
    Nominal connection diameter
    • on the pressure side R 11/2" - R 2"
    • of the float valve in the break tank G2"
    Operating unit protection class IP54
    Round break tank (540 l)
  • Construction
    Base frame : made of electrolytically galvanised steel and provided with height-adjustable vibration absorbers for comprehensive insulation against structure-borne noise; other versions on request
    Pipework : complete pipework made of stainless steel 1.4301, suitable for the connection of all conventional piping materials; the pipework is dimensioned according to the overall hydraulic performance of the FLA pressure boosting system
    Pumps : Helix FIRST V 16, 22 series pumps; all pump components in contact with fluid are made of stainless steel/EN-GJL-250, with cataphoretic coating.
    Valves : A special brass valve is located at the upper end of the hydraulic section of the pump for returning a bypass volume flow to the break tank. This valve and the shut-off devices are sealed and protected against unauthorised adjustment.
    Diaphragm pressure vessel : 8 l/PN 16 arranged on the discharge side. For testing and inspection purposes, equipped with a special throughflow fitting that enables the diaphragm pressure vessel to be shut-off and drained
    Pressure switch: A pressure switch arranged on the discharge side, for activation of the central FLA controller
    Pressure indication : Pressure gauge (ø 63 mm) on the discharge side; additional digital display of operating pressure and setting parameters in the FLA controller
    Control device/controller : The system is equipped with a specific FLA controller as standard
    Break tank : The system is supplied with a break tank (540 l). This is equipped with a float valve and a specific spray water device approved for drinking water to ensure compliance with the Drinking Water Ordinance
  • Design
    Pressure-boosting system for firefighting in accordance with DIN 14462 for indirect connection.
    With a vertical, stainless steel high-pressure multistage centrifugal pump in glanded version and break tank.
  • Application
    Fully automatic water supply for firefighting systems with type "F" fire hose reels in domestic, commercial and public buildings, hotels, hospitals, shopping centres and industrial systems
  • Equipment/function
    One Helix FIRST V 16, 22 series pump, equipped with IE3 motors
    Automatic pump control via FLA control unit
    Components that come in contact with the fluid are corrosion-resistant
    Base frame made of galvanised steel, with height-adjustable vibration absorbers for insulation against structure-borne noise
    Pipework made of 1.4301 stainless steel
    Shut-off ball valve and Non-return valve, on the discharge side
    Gate valve between pump and break tank
    Preset valve at pump outlet for minimum bypass flow
    Pressure switch and Pressure gauge , on the discharge side
    Diaphragm pressure vessel 8 l, PN 16, on the discharge side
    Atmospherically ventilated break tank in accordance with DIN 14462 with free exhaust in accordance with EN 13077, type AB in accordance with DIN EN 1717
    Round PEHD tank with water level indicator
    Drainage
    Venting and exhaust with valve plate
    Inspection opening with cover, which can be sealed without any tools
    Internal wash plates to reduce the flow rate of the fluid
    Inlet, draw-off connection
    Overflow as free outlet, type AB in accordance with DIN EN 1717 with non-circular cross-section


FLA Compact-2 Helix V
  • Technical Data
    Mains Connection3~400V 50 Hz
    Max. fluid temperature 50 °C
    Rated pressure 16 bar
    Operating pressure up to 16 bar
    Inlet pressure from break tank < 1 bar
    Nominal connection diameter
    • on the pressure side R 21/2" - R 3"
    • of the float valve in the break tank 2 x G2"
    Operating unit protection class IP54
    Rectangular break tank (540 l)
  • Construction
    Base frame : made of electrolytically galvanised steel and provided with height-adjustable vibration absorbers for comprehensive insulation against structure-borne noise; other versions on request
    Pipework : complete pipework made of stainless steel 1.4301, suitable for the connection of all conventional piping materials; the pipework is dimensioned according to the overall hydraulic performance of the FLA pressure boosting system
    Pumps : Helix FIRST V 16, 22 series pumps; all pump components in contact with fluid are made of stainless steel/EN-GJL-250, with cataphoretic coating. For more information about the pump, please refer to the catalogue section "High-pressure multistage centrifugal pumps"
    Valves : A special brass valve is located at the upper end of the hydraulic section of the pump for returning a bypass volume flow to the break tank. This valve and the shut-off devices are sealed and protected against unauthorised adjustment.
    Diaphragm pressure vessel : 8 l/PN 16 arranged on the discharge side. For testing and inspection purposes, equipped with a special throughflow fitting that enables the diaphragm pressure vessel to be shut-off and drained
    Pressure switch: A pressure switch arranged on the discharge side, for activation of the central FLA controller
    Pressure indication : Pressure gauge (ø 63 mm) on the discharge side; additional digital display of operating pressure and setting parameters in the FLA controller
    Control device/controller : The system is equipped with a specific FLA controller as standard
    Break tank : The system is supplied with a break tank (540 l). This is equipped with 2 float valves and a specific spray water device approved for drinking water to ensure compliance with the Drinking Water Ordinance
  • Design
    Pressure-boosting system for firefighting in accordance with DIN 14462 for indirect connection.
    With 2 vertical, stainless steel high-pressure multistage centrifugal pumps in glanded version and break tank.
  • Application
    Fully automatic water supply for firefighting systems with type "F" fire hose reels in domestic, commercial and public buildings, hotels, hospitals, shopping centres and industrial systems
  • Equipment/function
    2 Helix FIRST V 16, 22 series pump, equipped with IE3 motors
    Automatic pump control via FLA control unit
    Components that come in contact with the fluid are corrosion-resistant
    Base frame made of galvanised steel, with height-adjustable vibration absorbers for insulation against structure-borne noise
    Pipework made of 1.4301 stainless steel
    Shut-off ball valve and Non-return valve, on the discharge side of each pump
    Gate valve between pump and break tank
    Preset valve at pump outlet for minimum bypass flow
    Pressure switch and Pressure gauge , on the discharge side of each pump
    Diaphragm pressure vessel 8 l, PN 16, on the discharge side
    Atmospherically ventilated break tank in accordance with DIN 14462 with free exhaust in accordance with EN 13077, type AB in accordance with DIN EN 1717
    Rectangular PEHD tank with water level indicator
    Drainage
    Venting and exhaust with valve plate
    Inspection opening with cover, which can be sealed without any tools
    Internal wash plates to reduce the flow rate of the fluid
    2 x inlet, 2 x draw-off connection
    Overflow as free outlet, type AB in accordance with DIN EN 1717 with non-circular cross-section


FLA-1
  • Technical Data
    Mains Connection3~400V 50 Hz
    Max. fluid temperature 50 °C
    Operating pressure 10 or 16 bar
    Inlet pressure from break tank < 1 bar
    Nominal connection diameter
    • on pressure side R 2" - DN 125
    • on suction side Rp 2"- DN 125
    Operating unit protection class IP54
  • Construction
    Base frame : made of electrolytically galvanised steel and provided with height-adjustable vibration absorbers for comprehensive insulation against structure-borne noise; other versions on request
    Pipework : complete pipework made of stainless steel 1.4301, suitable for the connection of all conventional piping materials; the pipework is dimensioned according to the overall hydraulic performance of the FLA pressure boosting system
    Pumps : Helix FIRST V 16, 22, 36, 52 and MVI 70 series pump; all pump components in contact with fluid are made of stainless steel/EN-GJL-250, with cataphoretic coating.
    Valves : For each pump, the non-return valve has a 1.4571 needle-type throttle for returning the bypass volume flow to the break tank. All throttle valves and shut-off devices are sealed and protected against unauthorised adjustment. The pump is equipped with an automatic air vent valve on the top of the hydraulics.
    Diaphragm pressure vessel : 8 l/PN 16 arranged on the discharge side. For testing and inspection purposes, equipped with a special throughflow fitting that enables the diaphragm pressure vessel to be shut-off and drained
    Pressure switch: A pressure switch arranged on the discharge side, for activation of the central FLA controller
    Pressure indication : Pressure gauge (ø 63 mm) on the discharge side; additional digital display of operating pressure and setting parameters in the FLA controller
    Control device/controller : The system is equipped with a specific FLA controller as standard
  • Design
    Pressure-boosting system for firefighting in accordance with DIN 14462 for indirect connection.
    With a vertical, stainless steel high-pressure multistage centrifugal pump in glanded version.
  • Application
    Fully automatic water supply for firefighting systems with wall hydrants of the type "F" in domestic, commercial and public buildings, hotels, hospitals, shopping centres and also offices and industrial buildings.
  • Equipment/function
    A pump of the Helix FIRST V 16, 22, 36, 52 or MVI 70 series, equipped with IE3 motor
    Automatic pump control via FLA control unit
    Components that come in contact with the fluid are corrosion-resistant
    Base frame made of galvanised steel, with height-adjustable vibration absorbers for insulation against structure-borne noise
    Pipework made of 1.4301 stainless steel
    Gear-operated ball valve or annular shut-off valve on the suction and discharge side of the pump
    Non-return valve, on the discharge side
    Throttle valve made of stainless steel 1.4571 on the suction side of the pump
    Pressure switch and Pressure gauge , on the discharge side
    Diaphragm pressure vessel 8 l, PN 16, on the discharge side
    Accessories : Atmospherically ventilated break tank in accordance with DIN 14462 with free exhaust in accordance with EN 13077, type AB in accordance with DIN EN 1717


FLA-2 TRVB
  • Technical Data
    Mains Connection3~400V 50 Hz
    Max. fluid temperature 50 °C
    Operating pressure 10 or 16 bar
    Inlet pressure from break tank < 1 bar
    Nominal connection diameter
    • on the pressure side R 2"1/2 (3" for Helix V 1612)
    • on the suction side Rp 2"1/2 (3" for Helix V 1612)
    Operating unit protection class IP54
  • Construction
    made of electrolytically galvanised steel and provided with height-adjustable vibration absorbers for comprehensive insulation against structure-borne noise; other versions on request
    Pipework : complete pipework made of stainless steel 1.4301, suitable for the connection of all conventional piping materials; the pipework is dimensioned according to the overall hydraulic performance of the FLA pressure boosting system
    Pumps : Helix FIRST V 10, 16 series pumps; all pump components in contact with fluid are made of stainless steel/EN-GJL-250, with cataphoretic coating.
    Valves : For each pump, the non-return valve has a 1.4571 needle-type throttle for returning the bypass volume flow to the break tank. All throttle valves and shut-off devices are sealed and protected against unauthorised adjustment. The pumps are equipped with an automatic air vent valve on the top of the hydraulics.
    Diaphragm pressure vessel : 8 l/PN 16 arranged on the discharge side. For testing and inspection purposes, equipped with a special throughflow fitting that enables the diaphragm pressure vessel to be shut-off and drained
    Pressure sensor : A pressure sensor is arranged on the discharge side of each pump, for activation of the central CC Fire
    Pressure indication : Pressure gauge (ø 63 mm) on the discharge side; additional digital display of operating pressure and setting parameters in the CC Fire switchgear
    Control device/controller : he system is standard-equipped with a special CC Fire switchgear
  • Design
    Pressure boosting system for fire fighting in accordance with TRVB 128S-2012 for indirect connection.
    With 2 vertical stainless steel high-pressure multistage centrifugal pumps in glanded version
  • Application
    Fully automatic water supply for fire extinguishing systems with fire hose reels in domestic, commercial and public buildings, hotels, hospitals, shopping centres and also office and industrial buildings
  • Equipment/function
    2 pumps in the Helix FIRST V 10 series, 16 equipped with IE2 motors up to 5.5 kW and IE3 motors from 7.5 kW
    Automatic pump control via switchgear CC-Fire
    Components that come in contact with the fluid are corrosion-resistant
    Base frame made of galvanised steel, with height-adjustable vibration absorbers for insulation against structure-borne noise
    Pipework made of stainless steel
    Shut-off device on the suction and pressure sides of each pump
    Non-return valve on the pressure side of each pump
    Stainless steel throttle valve on the outlet of every pump
    Automatic air vent valve on the header of every pump
    Diaphragm pressure vessel 8 l, PN 16, pressure side
    2 pressure sensors, pressure side
    Pressure gauge, pressure side
    Accessories : Atmospherically ventilated break tank in accordance in accordance with DIN 14462 with free exhaust in accordance with EN 13077, type AB in accordance with DIN EN 1717


FLA-2
  • Technical Data
    Mains Connection3~400V 50 Hz
    Max. fluid temperature 50 °C
    Operating pressure 10 or 16 bar
    Inlet pressure from break tank < 1 bar
    Nominal connection diameter
    • on pressure side R 2" - DN 125
    • on suction side Rp 2"- DN 125
    Operating unit protection class IP54
  • Construction
    Base frame : made of electrolytically galvanised steel and provided with height-adjustable vibration absorbers for comprehensive insulation against structure-borne noise; other versions on request
    Pipework : complete pipework made of stainless steel 1.4301, suitable for the connection of all conventional piping materials; the pipework is dimensioned according to the overall hydraulic performance of the FLA pressure boosting system
    Pumps : Helix FIRST V 16, 22, 36, 52 and MVI 70 series pump; all pump components in contact with fluid are made of stainless steel/EN-GJL-250, with cataphoretic coating.
    Valves : For each pump, the non-return valve has a 1.4571 needle-type throttle for returning the bypass volume flow to the break tank. All throttle valves and shut-off devices are sealed and protected against unauthorised adjustment. The pump is equipped with an automatic air vent valve on the top of the hydraulics.
    Diaphragm pressure vessel : 8 l/PN 16 arranged on the discharge side. For testing and inspection purposes, equipped with a special throughflow fitting that enables the diaphragm pressure vessel to be shut-off and drained
    Pressure switch: A pressure switch arranged on the discharge side, for activation of the central FLA controller
    Pressure indication : Pressure gauge (ø 63 mm) on the discharge side; additional digital display of operating pressure and setting parameters in the FLA controller
    Control device/controller : The system is equipped with a specific FLA controller as standard
  • Design
    Pressure-boosting system for firefighting in accordance with DIN 14462 for indirect connection.
    With 2 vertical stainless steel high-pressure multistage centrifugal pumps in glanded version
  • Application
    Fully automatic water supply for firefighting systems with wall hydrants of the type "F" in domestic, commercial and public buildings, hotels, hospitals, shopping centres and also offices and industrial buildings
  • Equipment/function
    2 Helix FIRST V 16, 22, 36, 52 or MVI 70 series pumps, equipped with IE2 motors
    Automatic pump control via FLA control unit
    Components that come in contact with the fluid are corrosion-resistant
    Base frame made of galvanised steel, with height-adjustable vibration absorbers for insulation against structure-borne noise
    Pipework made of 1.4301 stainless steel
    Gear-operated ball valve or annular shut-off valve on the suction and discharge side of the pump
    Non-return valve, on the discharge side
    Throttle valve made of stainless steel 1.4571 on the suction side of the pump
    Pressure switch and Pressure gauge , on the discharge side
    Diaphragm pressure vessel 8 l, PN 16, on the discharge side
    Accessories : Atmospherically ventilated break tank in accordance with DIN 14462 with free exhaust in accordance with EN 13077, type AB in accordance with DIN EN 1717




Wilo Atmos Series
  • Application
    For pumping heating water (in accordance with VDI 2035), water-glycol mixtures, cooling water and chilled water without abrasive substances in heating, chilled water and cooling water systems.
    Applications for irrigation, building services, general industry, power stations, etc.
    Raw water intake, pressure boosting and general transport in power plants, waterworks and municipal drinking water supply networks
    Cooling water and industrial water supply in power plants and industrial facilities
    Irrigation in professional irrigation/agriculture
    Pumping of heating water (in accordance with VDI 2035 Germany) and water glycol mixtures

  View Solutions

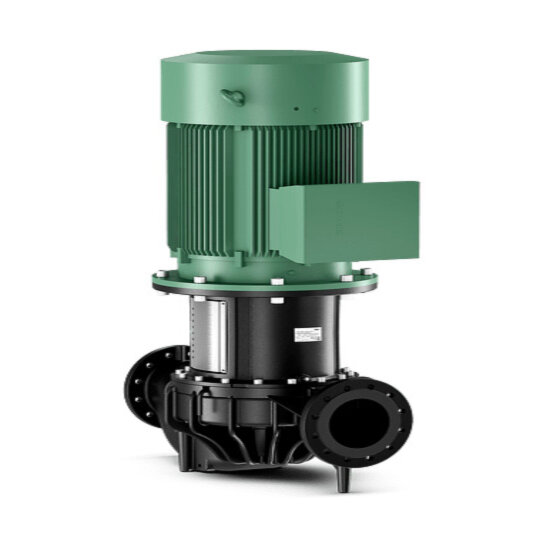

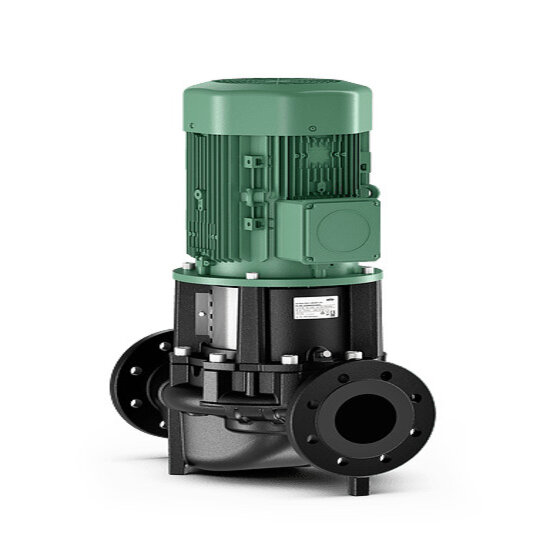

Atmos GIGA-I
  • Technical Data
    Permitted temperature range of the fluid -20°C to +140°C
    Max. ambient temperature 40°C
    Mains Connection 3~400V, 50Hz (others on request)
    Protection Class IP55
    Nominal Diameters DN 32 to DN 250
    Standard version for operating pressure 13 bar (up to +140°C) / 16 bar (up to +120°C)
  • Design
    Glanded pump in in-line design with flange connection
  • Application
    The pumping of heating water (in accordance with VDI 2035), chilled water and water-glycol mixtures without abrasive substances in heating, chilled water and cooling systems.
  • Construction
    Single-stage, low-pressure centrifugal pump in in-line design with
    Mechanical Seal
    Flange connection with pressure measuring connection R 1/8
    Lantern
    Coupling
    IEC standard motor


Atmos GIGA-B
  • Technical Data
    Permitted temperature range of the fluid -20°C to +140°C
    Mains Connection 3~400V, 50Hz (others on request)
    Protection Class IP55
    Nominal Diameters DN 32 to DN 150
    Max. operating pressure 16 bar (optionally 25 bar on request)
  • Design
    Glanded pump in monobloc design with flange connection
  • Application
    For pumping heating water (in accordance with VDI 2035), water-glycol mixtures, cooling water and chilled water without abrasive substances in heating, chilled water and cooling water systems.
  • Construction
    Single-stage low-pressure centrifugal pump in block design, with axial suction port and radially arranged pressure port with
    Mechanical Seal
    Flange connection with pressure measuring connection R 1/8
    Lantern
    Coupling
    IEC standard motor

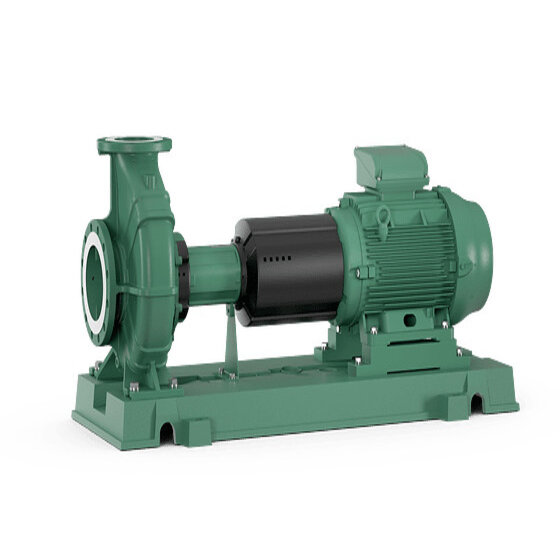

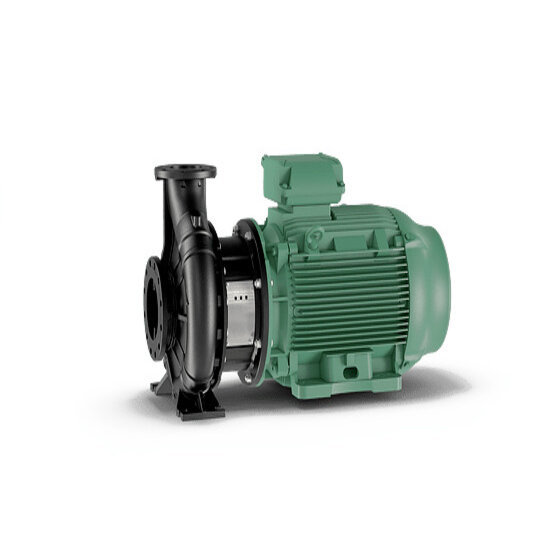

Atmos GIGA-N
  • Technical Data
    Permitted temperature range of the fluid -20°C to +140°C
    Mains Connection 3~400V, 50Hz
    Protection Class IP55
    Nominal Diameters DN 32 to DN 150
    Max. operating pressure 16 bar
  • Design
    Single-stage, low-pressure centrifugal pump with axial suction, mounted on a baseplate. Standard version with spacer coupling.
  • Application
    The pumping of heating water (in accordance with VDI 2035), chilled water and water-glycol mixtures without abrasive substances in heating, chilled water and cooling systems.
    Applications for irrigation, building services, general industry, power stations, etc.
  • Equipment/function
    Single-stage low-pressure centrifugal pump in monobloc design with
    Mechanical Seal
    Coupling
    Coupling guard
    Motor
    Baseplate
  • Construction
    Single-stage low-pressure centrifugal pump as baseplate pump with axial suction ports with flanged bearing brackets and axle fastening for flexibly coupled drives

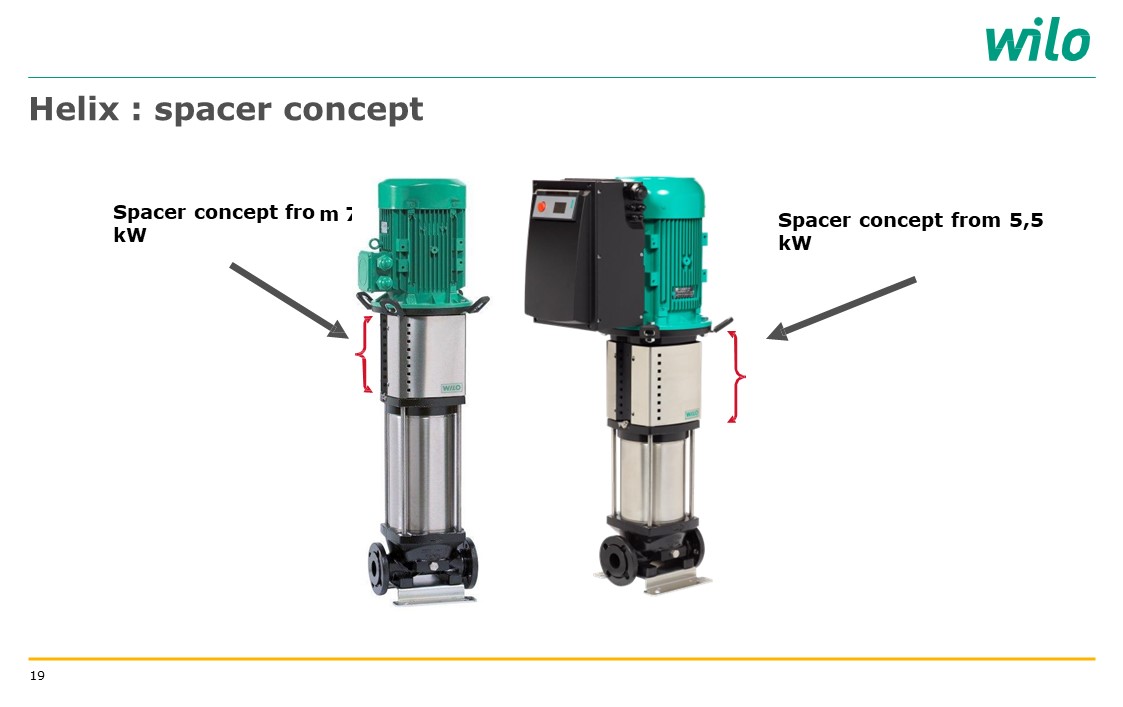

    Spacer coupling (sleeve coupling) is standard; this provides the option of leaving the motor in position when dismantling the rotor unit
    Variant ...-P5 without spacer coupling (at reduced price)

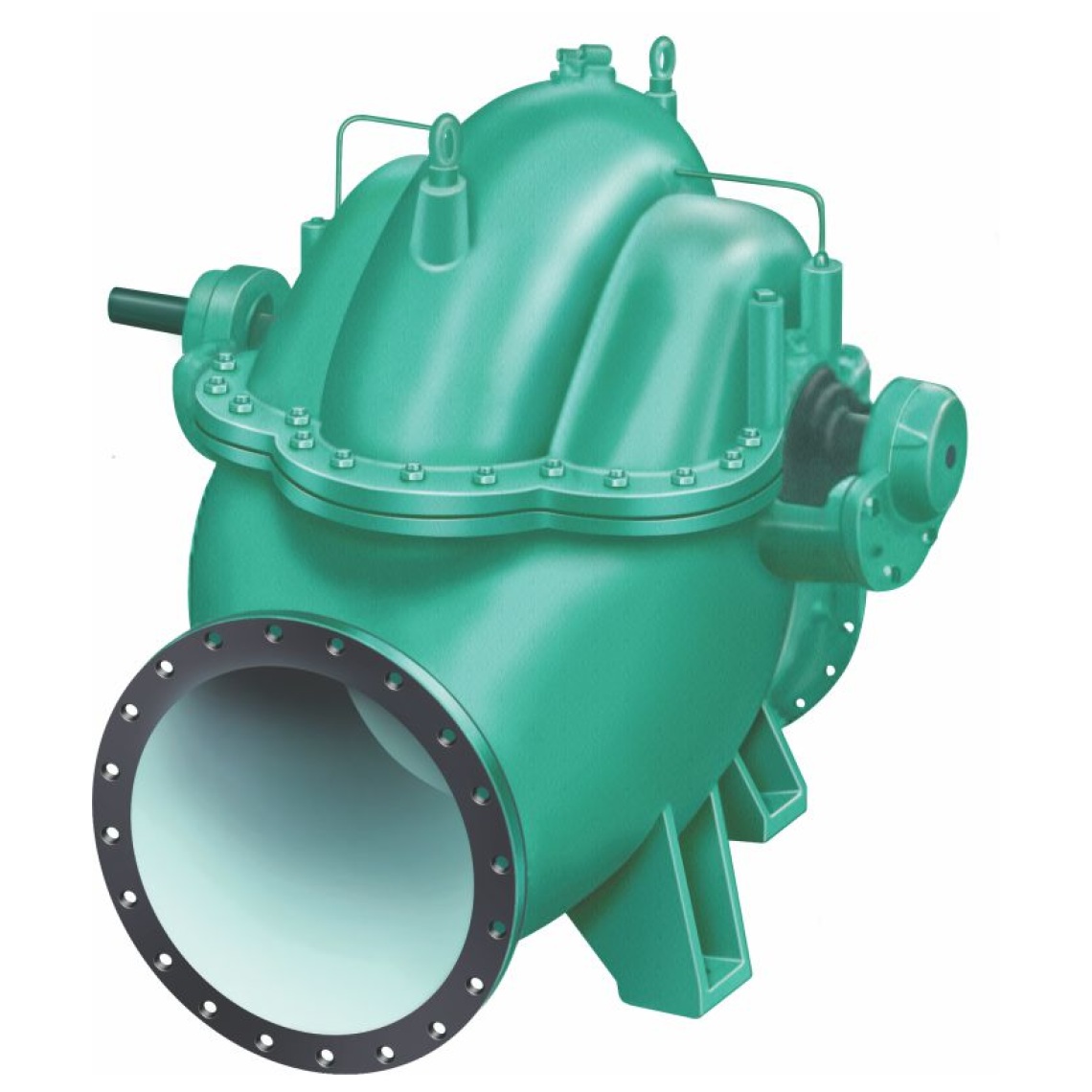

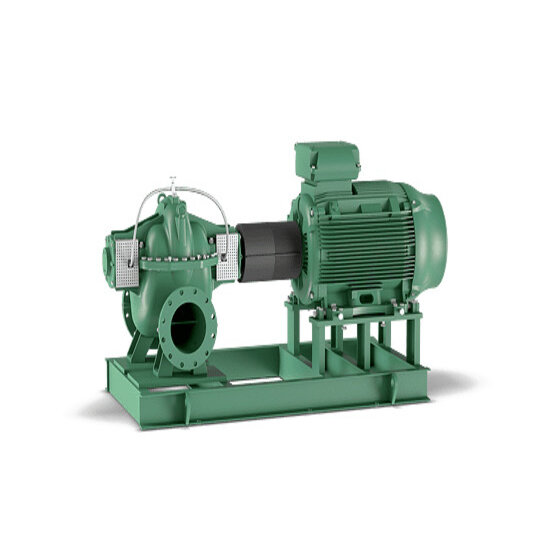

Atmos TERA-SCH
  • Technical Data
    Fluid Temperature -20°C to +120°C
    Mains Connection 3~400V, 50Hz
    Nominal Diameters on the suction side - DN 150 to DN 600
    on the pressure side - DN 125 to DN 450
    Max. operating pressure PN 10, PN 16
  • Design
    Pump with axially split housing mounted on a base frame
  • Application
    Raw water intake, pressure boosting and general transport in power plants, waterworks and municipal drinking water supply networks
    Cooling water and industrial water supply in power plants and industrial facilities
    Irrigation in professional irrigation/agriculture
    Pumping of heating water (in accordance with VDI 2035 Germany) and water glycol mixtures
  • Construction
    Centrifugal pump with axially split housing, available in single-stage design
    Delivered as complete unit (pump with coupling, coupling guard, motor and baseplate) or without motor or only pump hydraulics
    Shaft sealing with mechanical seal or stuffing box packing
    2-, 4- and 6-pole motors; IE3-standard to 1000 kW (IE4 on request)
    Welded steel frame




Wilo - Pressure Booster series
  • Applications -

    Water transfer / Pressure boosting in -
    Bungalows
    Farm-houses
    Apartments
    Hostels
    Water supply and distribution from a sump or a tank

  View Solutions

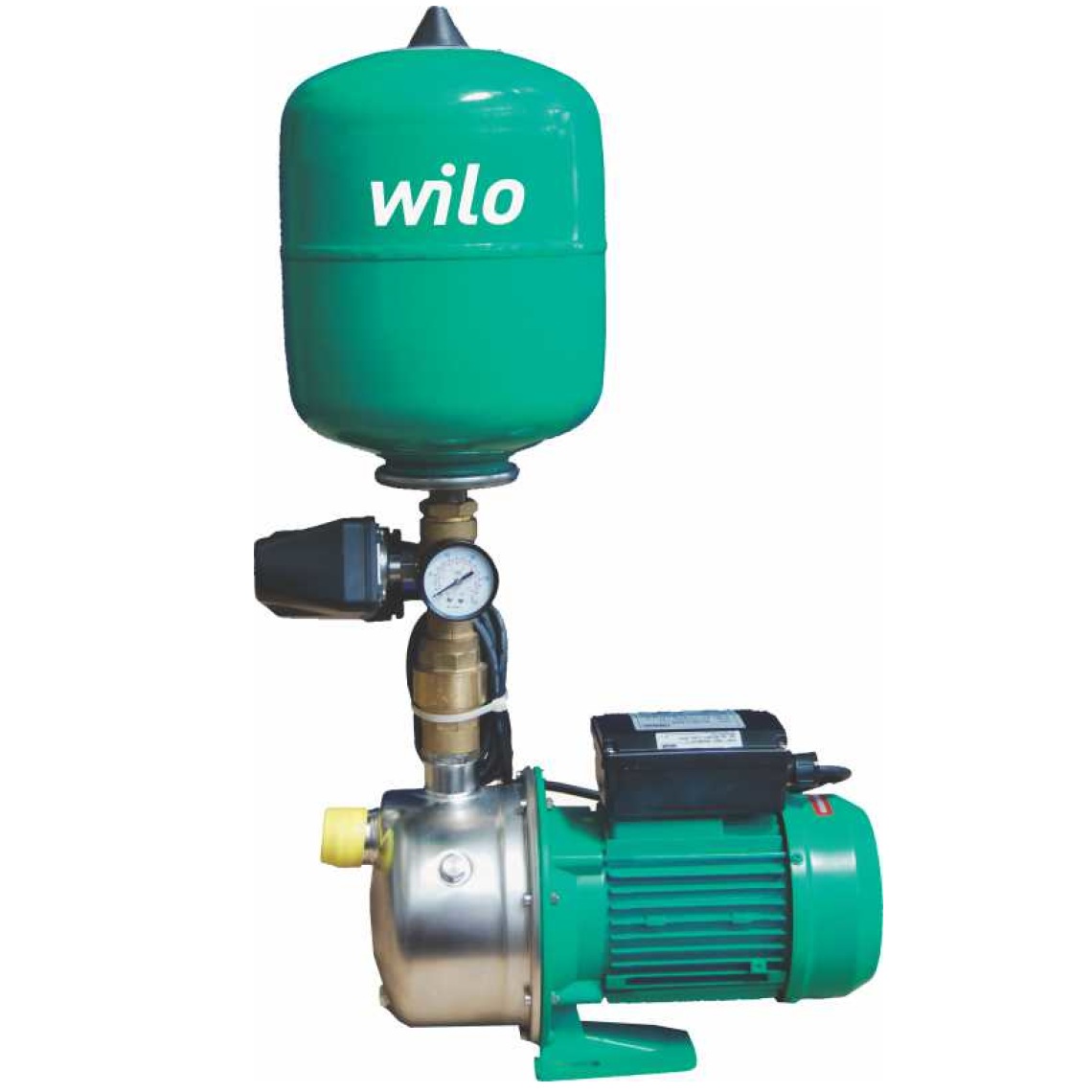

Single pump booster (SS Impeller) - FWJ
  • Technical Data
    Flow upto 80 LPM
    Head upto 46 mts
    Voltage 1 ~ 230V, 50Hz
  • Application
    Water transfer in - Bungalows / farm houses / apartments / hostels
  • Features
    Stainless steel pump body, stainless steel impeller, available with electronic control for automatic operation, high efficient motor suitable for wide voltage fluctuations, anti rust material, component parts insensitive to corrosion, easy to carry, install and operate


Single pump booster (SS impeller) - HWJ
  • Technical Data
    Flow upto 80 LPM
    Head upto 46 m
    Voltage 1 ~ 230V, 50Hz
  • Application
    Water transfer in - Bungalows / farm houses / apartments / hostels
  • Features
    Stainless steel pump body, stainless steel impeller, available with hydro pneumatic tank for automatic operation, high efficient motor suitable for wide voltage fluctuations, anti rust material, component parts insensitive to corrosion, easy to carry, install and operate

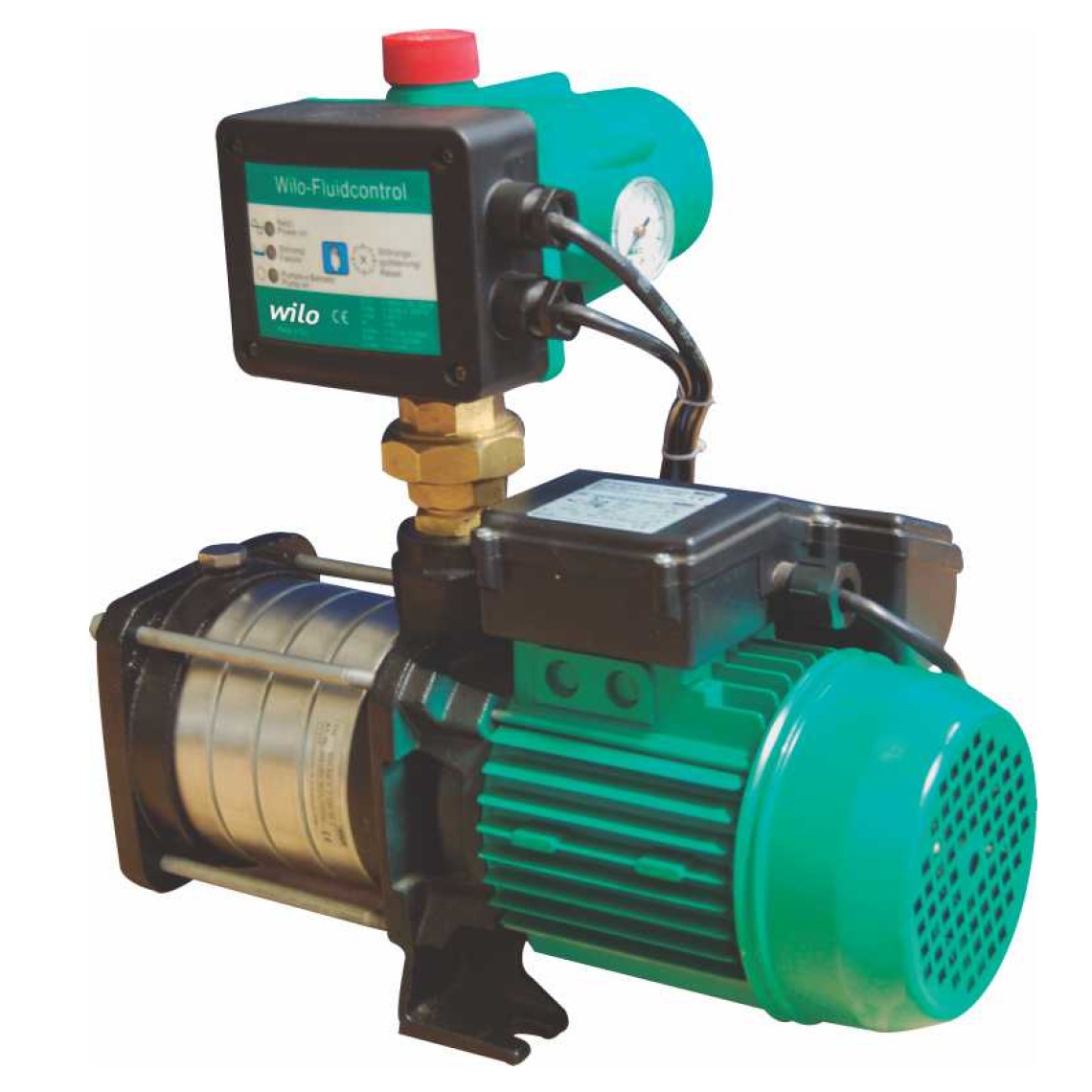

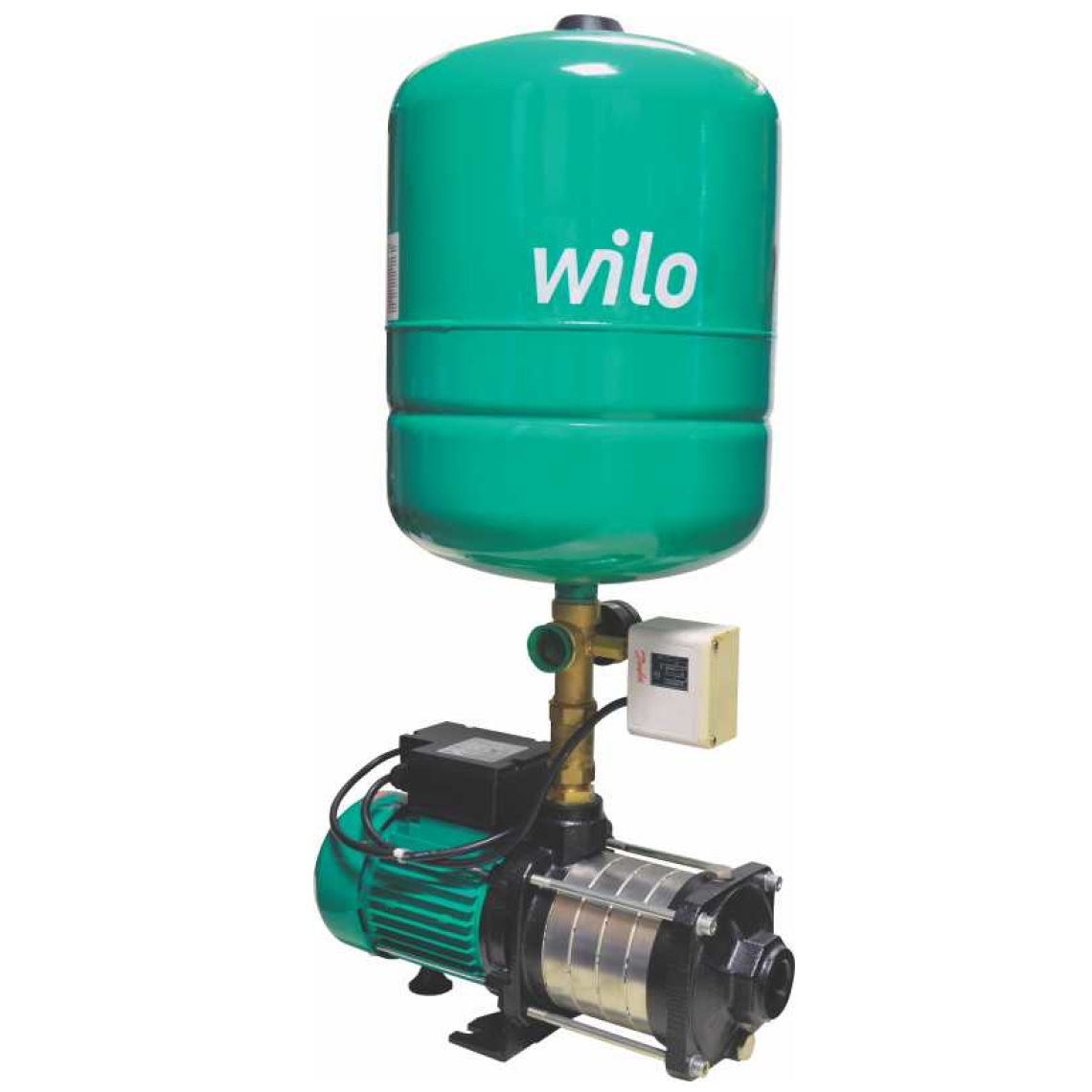

Single pump booster (SS impeller) - HMHIL
  • Technical Data
    Flow upto 215 LPM
    Head upto 62 m
    Voltage 1 ~ 230V, 50Hz
  • Application
    Water transfer in - Bungalows / farm houses / apartments / hostels
  • Features
    Silent in operation, stainless steel impeller, wetted parts made up of stainless steel, available with hydro pneumatic tank, high efficient motor suitable for wide voltage fluctuations, silent in operation and easy to carry, install and operate


Single pump booster (SS impeller) - FMHIL
  • Technical Data
    Flow upto 215 LPM
    Head upto 62 m
    Voltage 1 ~ 230V, 50Hz
  • Application
    Water transfer in - Bungalows / Farm houses / Apartments / Hostels
  • Features
    Stainless steel impeller, wetted parts made up of stainless steel, available with hydro pneumatic tank / electronic control for automatic operation, high efficient motor suitable for wide voltage fluctuations, silent in operation and easy to carry, install and operate

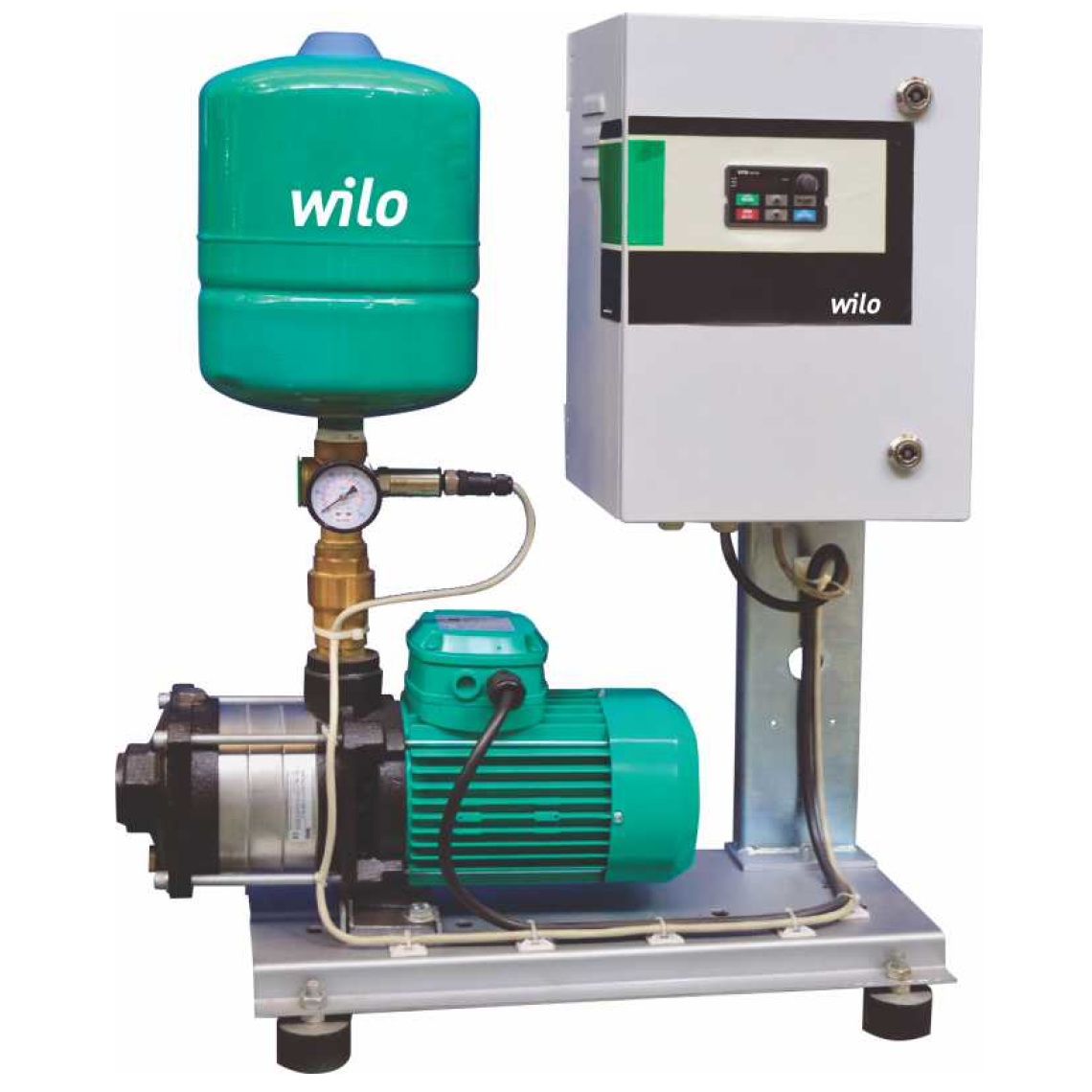

Multistage pressure booster system with VFD (SS impeller) - VMHIL / VMHI
  • Technical Data
    Flow upto 167 LPM
    Head upto 65 m
  • Application
    The pressure boosting pump with variable frequency drive is used to maintain the constant pressure in water supplies of - Residential buildings / Hotels / Hospitals / Water supply and distribution from a sump or a tank
  • Features
    Horizontal multistage stainless steel centrifugal pump with electric motor, non return brass valve on delivery, five way connector on delivery line, pressure transmitter and pressure gauge, pump and panel mounting base plate, factory assembled system supplied with pressure tank for ready to use, control panel with built in VFD, built in PLC and PID functions for pumping application, VFD communication through RS 485 Modbus communication through RJ 45 Connector for BMS and built in over voltage, under voltage, short circuit motor overload and dry run protection with float.


Horizontal twin pump booster (SS impeller) - MHIL / MHI - BC
  • Technical Data
    Flow upto 430 LPM
    Head upto 65 m
  • Application
    Pressure boosting in - Bungalows / farm houses / apartments / hotels
  • Features
    Horizontal multistage stainless steel centrifugal pump with electric motor, factory assembled system along with control panel supplied for ready to use, automatic pump cascading and alteration, built in over voltage, under voltage, short circuit motor overload and dry run protection with float and easy to install and operate




Wilo Borewell Submersibles
  • Application
    Domestic household water supply
    Water supply to high rise building

    Water Supply in -
    Housing complex, villas, farm houses
    Gardens and nurseries
    Washing - garages
    Poultry farms, cattle farms and stud farms
    Fountains

  View Solutions

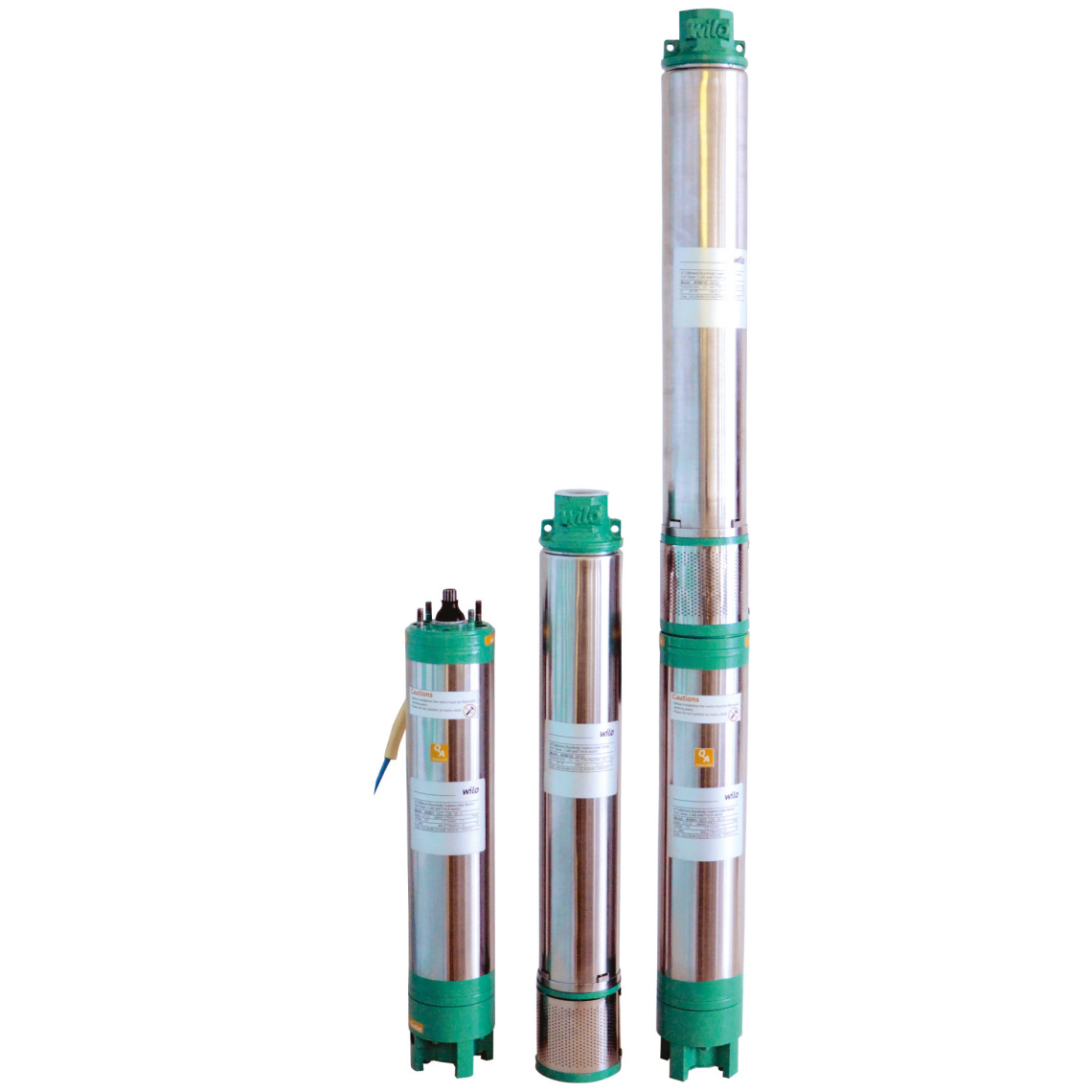

Borewell submersible pumpset 75 mm - (WBW3”) - Water filled
  • Technical Data
    Flow upto 95 LPM
    Head upto 246 ft
    Power upto 1 HP
  • Application
    Domestic household water supply / water supply to high rise building / housing complex / villas / farm houses / gardens and nurseries / washing - garages / poultry farms , cattle farms and stud farms / fountains
  • Features
    Wide voltage range available in single phase, high grade engineered polymer - glass filled virgin noryl, high quality winding wires to ensure reliability and capability to withstand wide voltage fluctuation, adequate bearing supports are provided at top, bottom and middle for better stability, casing are provided with wear ring (SS) for longer life and ease in maintenance, top and suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss, water lubrication and fully rewindable motor with 2.75 m 3 core PVC flat cables along with earthing provision and resistant to corrosion and abrasion


Borewell submersible pumpset 100 mm - (WBW4") - Water filled
  • Technical Data
    Flow upto 500 LPM
    Head upto 1142 ft
    Power upto 5 HP
  • Application
    Domestic household water supply / water supply to high rise building / housing complex / villas / farm houses / gardens and nurseries / washing - garages / poultry farms , cattle farms and stud farms / fountains
  • Features
    Discharge upto to 500 LPM, head upto 348 mts (1142 ft), pump form 0.37 kW (0.5 HP) upto 3.7 kW (5 HP), wide voltage range available in single phase and three phase, high grade engineered polymer - glass filled virgin noryl, high quality winding wires to ensure realibility & capability to withstand with voltage fluctuation, adequate bearing supports are provided at top, bottom and middle for better stability, casing are provided with wear ring (SS) for longer life and ease in maintenance, top & suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss, water lubricated and fully rewindable motor with 2.75 m 3 core PVC flat cables along with earthing provision and resistant to corrosion and abrasion


Control Panel for Borewell submersible pumpset - WBW4
  • Technical Data
    Power 0.5 HP to 5.0 HP
    Phase 1 Ph & 3 Ph
  • Application
    Domestic household water supply / water supply to high rise buildings / housing complex / villas / farm houses / gardens & nurseries / washing – garages / poultry farms / cattle farms and stud farms / fountains
  • Features
    Excellent aesthetically designed & Robust construction, wall mounted/Floor Mounted Powder coated sheet metal enclosure, 1 nos. of earth terminal, easy to install, operate & maintain, fitted with 4 Pole heavy duty contactor it's can operate under wide voltage range, backup O/L Protection by OLR, highly Precise Digital display unit for full fledged motor protection, password protection for security and plug & play- interchangeable parts


Borewell submersible pumpset 125 mm - (WBW5”) - Water filled
  • Technical Data
    Flow upto 700 LPM
    Head upto 47 ft
    Power upto 5 HP
  • Application
    Domestic and community water supply / water supply to high rise building, housing complex, villas and hotels / fountains / farm houses / gardens / nurseries / drip and sprinkler irrigation / washing - garages / poultry farms, cattle farms and stud farms / industrial applications
  • Features
    Wide voltage range available, high quality winding wires to ensure reliability & capability to withstand wide voltage fluctuation, adequate bearing supportsare provided at top, bottom and middle for better stability, top and suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss and water lubricated and fully rewindable motor with 2.75 m 3 core PVC flat cablealong with earthing provision


Borewell submersible pumpset 150 mm - (WBW6”) - Water filled
  • Technical Data
    Flow upto 1250 LPM
    Head upto 745 ft
    Power upto 12.5 HP
  • Application
    Domestic & community water supply, water supply to high rise building, housing complex, villas & hotels, fountains, f arm houses, gardens and nurseries, drip and sprinkler irrigation, washing - garages, poultry farms, cattle farms, and stud farms and Industrial applications
  • Features
    Wide voltage range available, high quality winding wires to ensure reliability & capability to withstand wide voltage fluctuation, adequate bearing supportsare provided at top, bottom and middle for better stability, top and suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss, water lubricated and fully rewindable motor with 2.75 m 3 core PVC flat cablealong with earthing provision and WBW6-A to K series with in-built CI diffuser, S S Impeller and S S sleeve with hard chrome plating


Borewell submersible pumpset 175 mm - (WBW7") - Water filled
  • Technical Data
    Flow upto 1750 LPM
    Head upto 207 ft
    Power upto 15 HP
  • Application
    Domestic household water supply, water supply to high rise building, housing complex, villas, farm houses, gardens and nurseries, washing - garages, poultry farms, cattle farms, and stud farms and fountains
  • Features
    Wide voltage range available in single and three phase, high grade engineered polymer - glass filled virgin noryl, high quality winding wires to ensure reliability & capability to withstand wide voltage fluctuation, adequate bearing supportsare provided at top, bottom and middle for better stability,casing are provided with wear ring (SS) for longer life and ease in maintenance, top and suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss, water lubricated and fully rewindable motor with 2.75 m 3 core PVC flat cablealong with earthing provision and resistant to corrosion and abrasion


Borewell submersible pumpset 200 mm - (WBW8") - Water filled
  • Technical Data
    Flow upto 2300 LPM
    Head upto 263 ft
    Power upto 25 HP
  • Application
    Domestic household water supply, water supply to high rise building, housing complex, villas, farm houses, gardens and nurseries, washing - garages, poultry farms, cattle farms, and stud farms and fountains
  • Features
    Wide voltage range available in single and three phase, high grade engineered polymer - glass filled virgin noryl, high quality winding wires to ensure reliability & capability to withstand wide voltage fluctuation, adequate bearing supportsare provided at top, bottom and middle for better stability,casing are provided with wear ring (SS) for longer life and ease in maintenance, top and suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss, water lubricated and fully rewindable motor with 2.75 m 3 core PVC flat cablealong with earthing provision and resistant to corrosion and abrasion




Wilo - Dewatering, Drainage and Sewage series
  • Dewatering from -
    Residential and commercial buildings
    Industry, hospitals

    Drainage of
    Clear or slightly dirty water
    Waste water even with suspended solids
    for domestic use

    Sewage disposal from -
    Residential and commercial buildings
    Industry, hospitals

  View Solutions

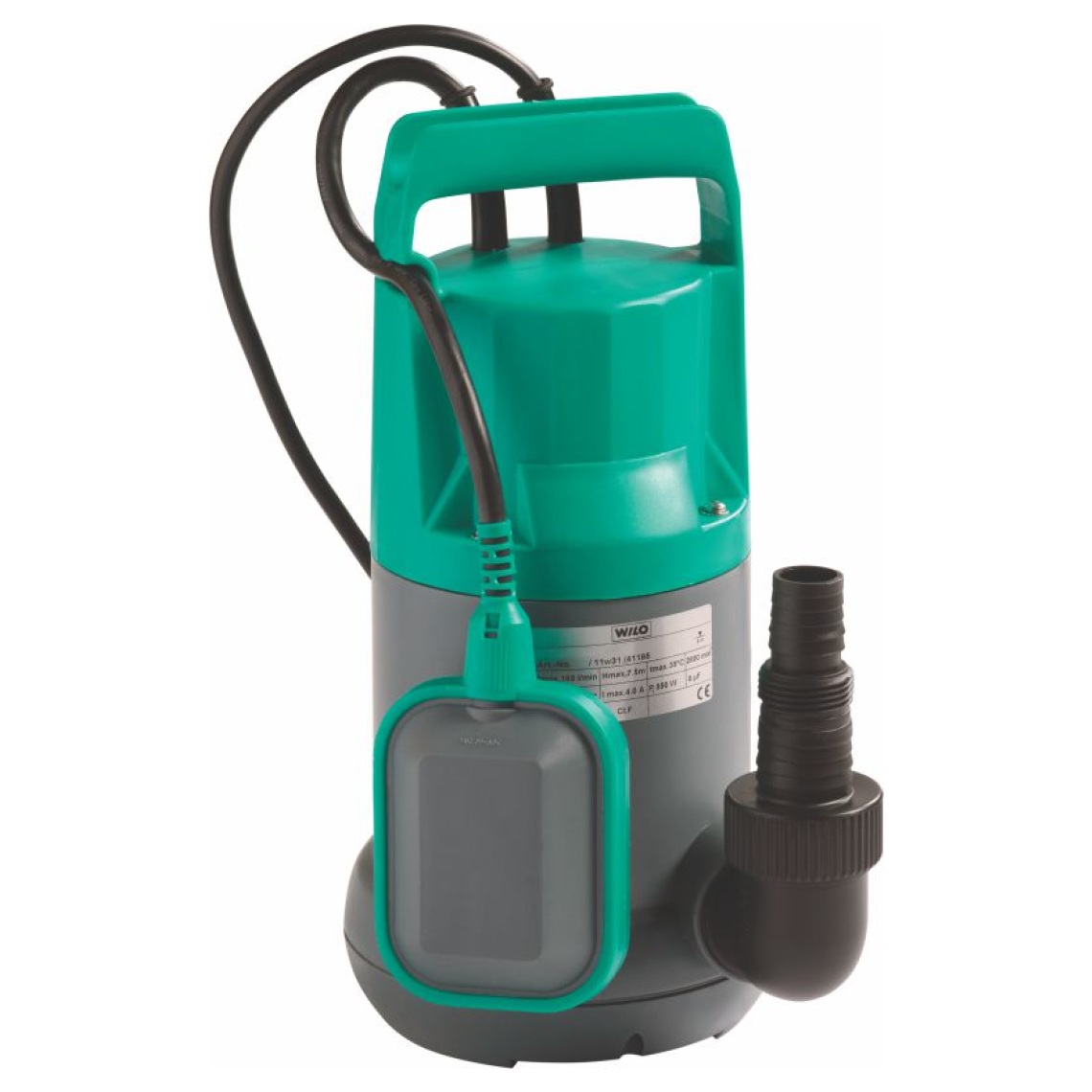

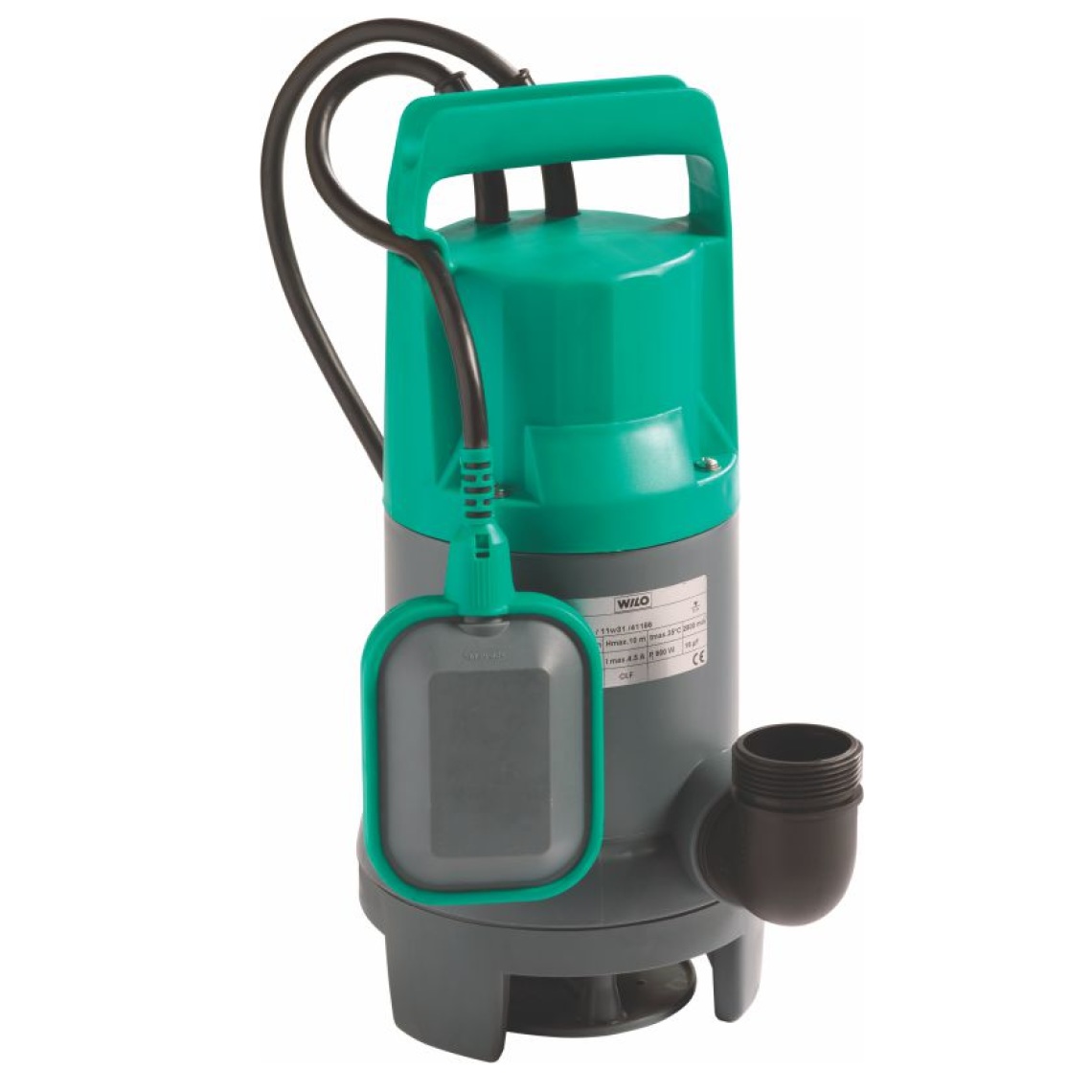

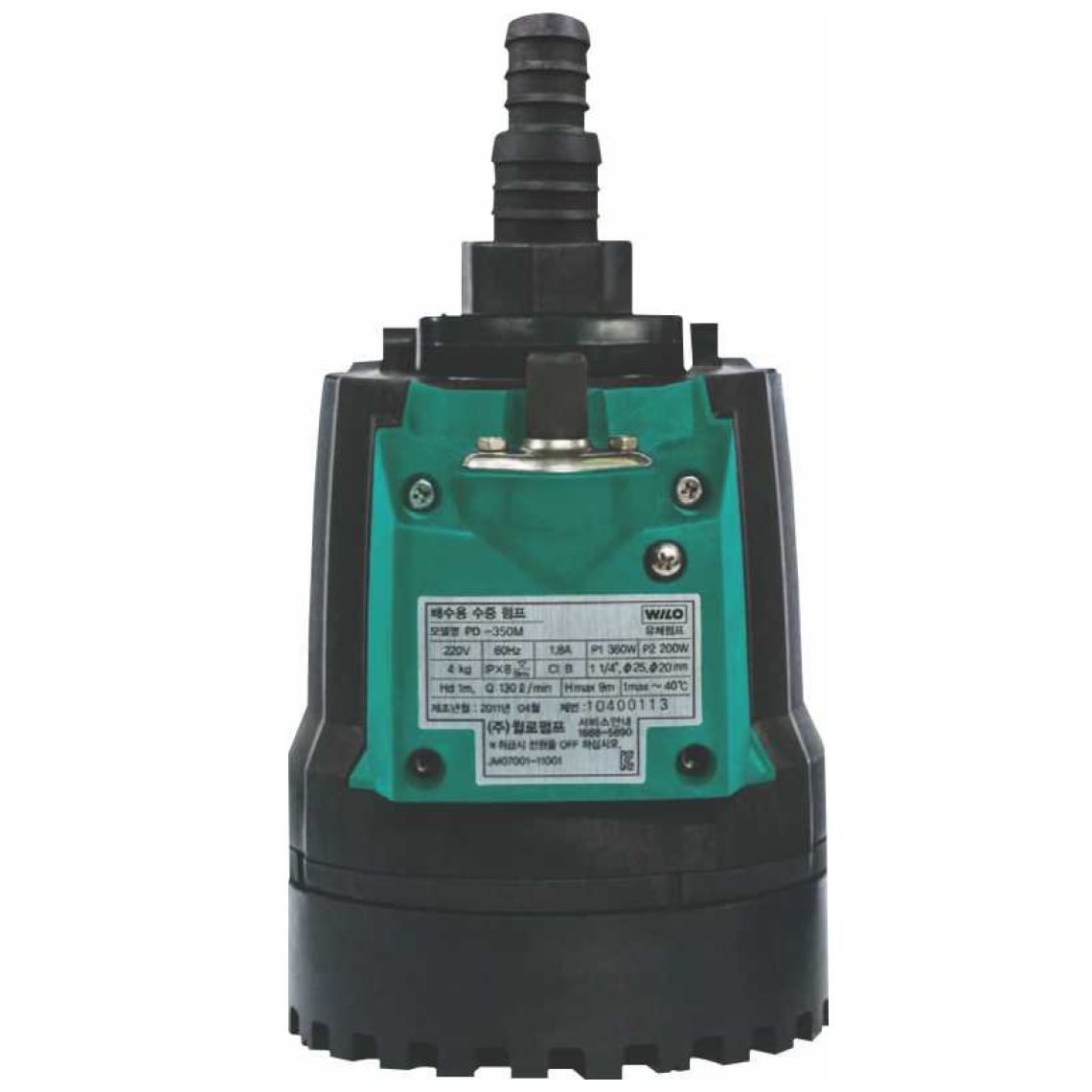

Submersible (Polypropylene) pump - Initial Drain 10.7
  • Technical Data
    Flow upto 235 LPM
    Head upto 8 m
    P2 upto 0.75 kW (1hp)
    Voltage 230V
    Phase Single
    Max. immersion depth 5 m
  • Application
    Drainage of clear or slightly dirty water / for domestic use and lifting of waste water even with suspended solids / for domestic use
  • Features
    Pump installation in vertical position with horizontal delivery port, pumps are delivered with elbow for vertical delivery port, pressure Port: G1’’1/2, cable length: 10m, protection class IP68 (up to 5 meters immerged), temperature range: +5 to +35°C, maximum number of starts per hour: 60, density of the fluid: 1 to 1.06, PH of the fluid: 6 to 8, minimum pumping level: Drain/Waste - 20 mm / 40 mm and non non return valve


Submersible (Polypropylene) pump - Initial Waste 14.9
  • Technical Data
    Flow upto 235 LPM
    Head upto 8 m
    P2 upto 0.75 kW (1hp)
    Voltage 230V
    Phase Single
    Max. immersion depth 5 m
  • Application
    Drainage of clear or slightly dirty water / for domestic use and lifting of waste water even with suspended solids / for domestic use
  • Features
    Pump installation in vertical position with horizontal delivery port, pumps are delivered with elbow for vertical delivery port, pressure Port: G1’’1/2, cable length: 10m, protection class IP68 (up to 5 meters immerged), temperature range: +5 to +35°C, maximum number of starts per hour: 60, density of the fluid: 1 to 1.06, PH of the fluid: 6 to 8, minimum pumping level: Drain/Waste - 20 mm / 40 mm and non non return valve

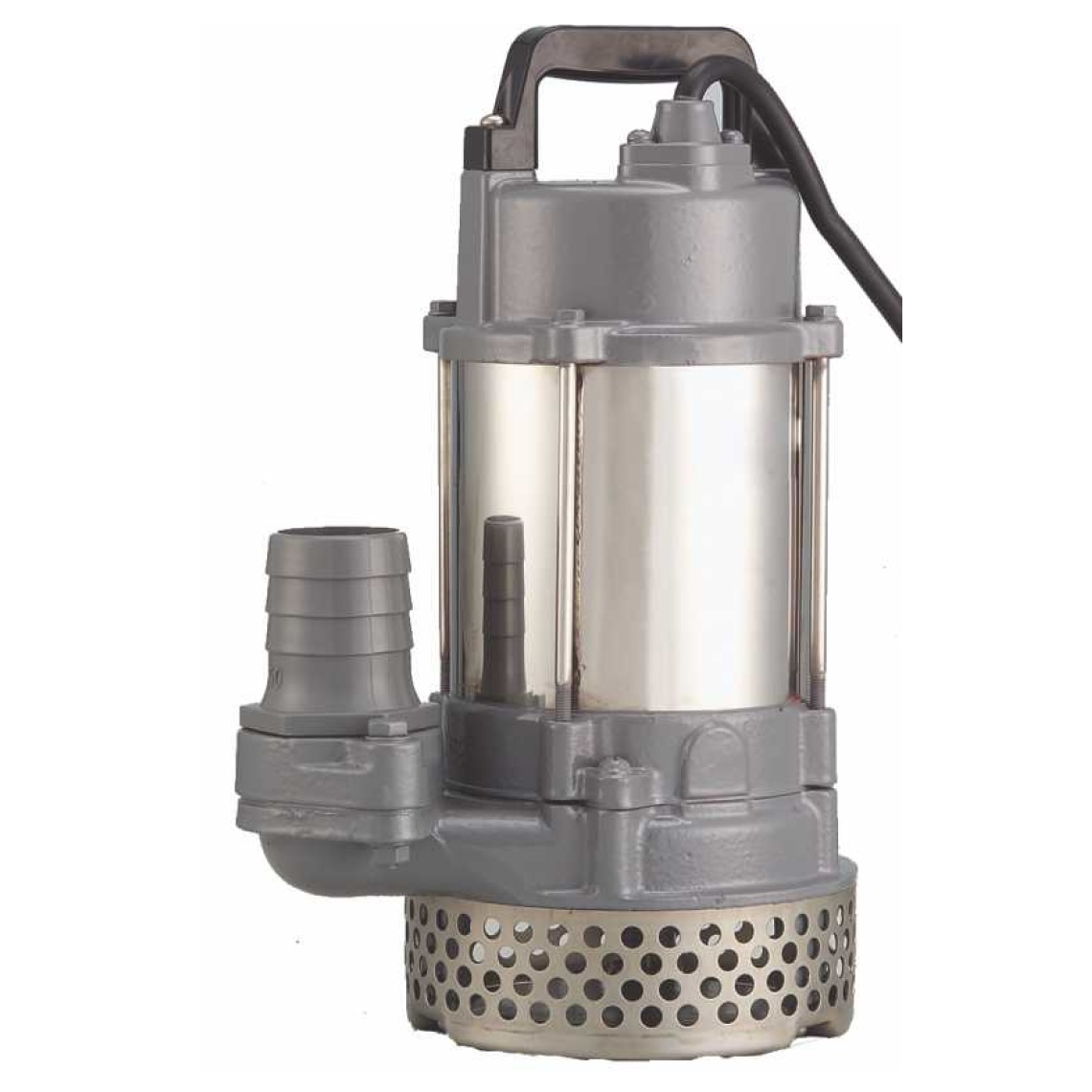

De-watering pump - FAS / FAC
  • Technical Data
    Flow upto 1700 LPM
    Head upto 30 m
    Solid Passage upto 56 mm
  • Application
    Dewatering from residential buildings / commercial buildings / industry / hospitals
  • Features
    Attached float switch (A-model) enables easy operation, robust high efficiency motor, stainless steel motor body with IP 68 protection, AC thermal motor protection, integrated motor control for current overload and high temperature and easy to carry and handle


Sewage pump - STS/PDV/TC
  • Technical Data
    Flow upto 1500 LPM
    Head upto 32 m
    Solid Passage upto 35 mm
  • Application
    Sewage disposal from residential buildings / commercial buildings / industry / small hospitals
  • Features
    Attached float switch (A-model) enables easy operation, robust pump with high efficiency, dry motor construction with sealing chamber, stainless steel motor body with IP 68 protection, AC thermal motor protection, integrated motor control for current overload and high temperature and asy to carry and handle




Wilo - High Suction Pumpsets
  • Application
    For lifting water to overhead storage tanks / lawn sprinklers
    Pressure boosting system

    Water transfer in -
    Apartments
    Bungalows
    Hotels
    Laundries
    Washing - garages
    Automobiles service station

  View Solutions



Self-priming high suction pumpset - WHS C
  • Technical Data
    Flow upto 71 LPM
    Head upto 39 m
    Power upto 1 HP
    Voltage 220V
  • Application
    Water transfer in - Water transfer for domestic use in gardening / apartments / bungalows / hotels / washing - garages /laundries / automobiles service station / for lifting water to overhead storage tanks / lawn sprinklers / pressure boosting system
  • Features
    Sturdy & compact design, high suction lift upto 8 m at 220V, single shaft for pump & motor to ensure permanent correct alignment, suitable for wide band of voltage i.e. 160V to 240V, lifelong permanent lubricated (ZZ) bearings, high performance TEFC, capacitor start capacitor run motor, class of insulation 'B’ built in thermal over-load protection, capacitor fixed inside the terminal box to avoid damage, dynamically balanced rotating parts to ensure min. vibration, noise free operation & long bearing life, sealing arrangement - Mech. seal (high quality for long life), direction of Rotation - CW, from driving end, high quality electric grade stamping are used for better efficiency, high Tensile Brass (HTB-1) Impeller to avoid clogging & increase durability, safety Feature - earthing provision, TOP and low life cycle cost - low maintenance, low power consumption and easy motor rewinding.


Self-priming high suction pumpset - WHS V
  • Technical Data
    Flow upto 44 LPM
    Head upto 36 m
    Power upto 0.5 HP
    Voltage 240V
  • Application
    Water transfer for domestic use in gardening / apartments / bungalows / hotels / washing - garages / laundries / automobiles service station / circulation of water in solar heater systems / for lifting water to overhead storage tanks / lawn sprinklers / pressure boosting system
  • Features
    High performance TEFC, capacitor start & run motor, Class of insulation 'B’, high suction lift upto 6 m at 240V, single shaft for pump & motor to ensure permanent correct alignment, sealing arrangement - Mech. seal (high quality for long life), direction of rotation - CW, from driving end, safety feature - earthing provision, TOP and brass impeller to avoid clogging & increase durability


Self-priming high suction pumpset - WHS S / WHS M
  • Technical Data
    Flow upto 53 LPM
    Head upto 42 m
    Power upto 1 HP
    Voltage 240V
  • Application
    Water transfer in - Gardening / apartments / bungalows / hotels / washing - garages / laundries / automobiles service station / for lifting water to overhead storage tanks / lawn sprinklers / pressure boosting system
  • Features
    High performance TEFC, capacitor start & run motor, Class of insulation 'B’, high suction lift upto 8.5 m at 240V, single shaft for pump & motor - to ensure permanent correct alignment, sealing arrangement - Mech. seal (high quality for long life), direction of rotation - CW, from driving end, safety feature - earthing provision, TOP and bronze impeller to avoid clogging & increase durability*

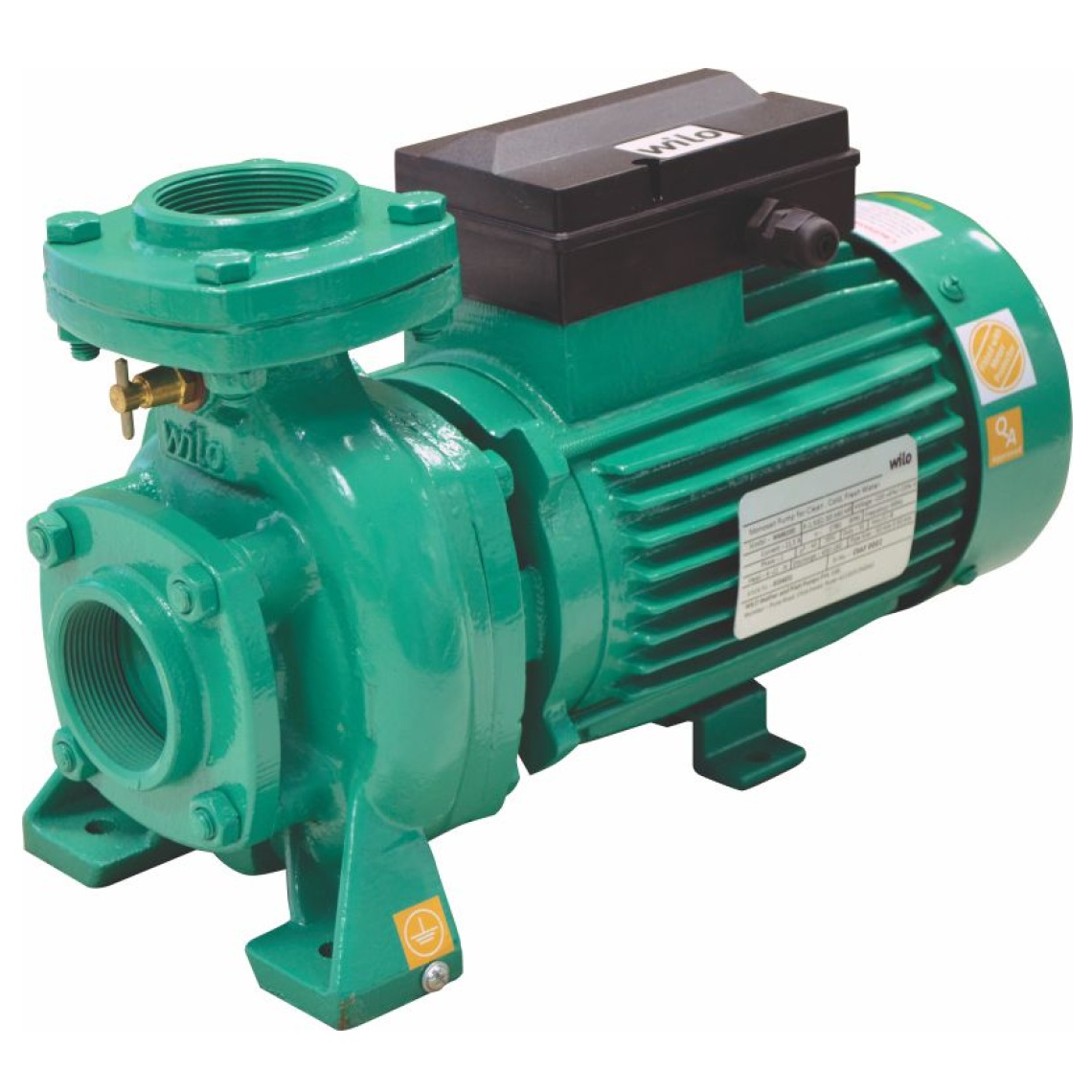

Monoblock pumpset- 1 Phase - WMB / MPMS
  • Technical Data
    Flow upto 750 LPM
    Head upto 30 m
    Power upto 2 HP
    Voltage 220V
  • Application
    Water supply in - Apartments / Hotels / Irrigation / Clear water transfer in Industries
  • Features
    Suitable for wide band of voltage i.e. 160V to 240V, lifelong permanent lubricated (ZZ) bearings, high performance TEFC, Class of insulation 'F’, built in thermal over-load protection, capacitor fixed inside the terminal box to avoid damage, dynamically balanced rotating parts to ensure min. vibration, noise free operation & long bearing life, sealing arrangement - Mech. Seal (High Quality for long life), designed for automatic air release during priming, direction of Rotation - ACW, when viewed from suction side, safety Feature - Earthing provision, TOP and low life cycle cost - low maintenance, low power consumption and easy motor rewinding

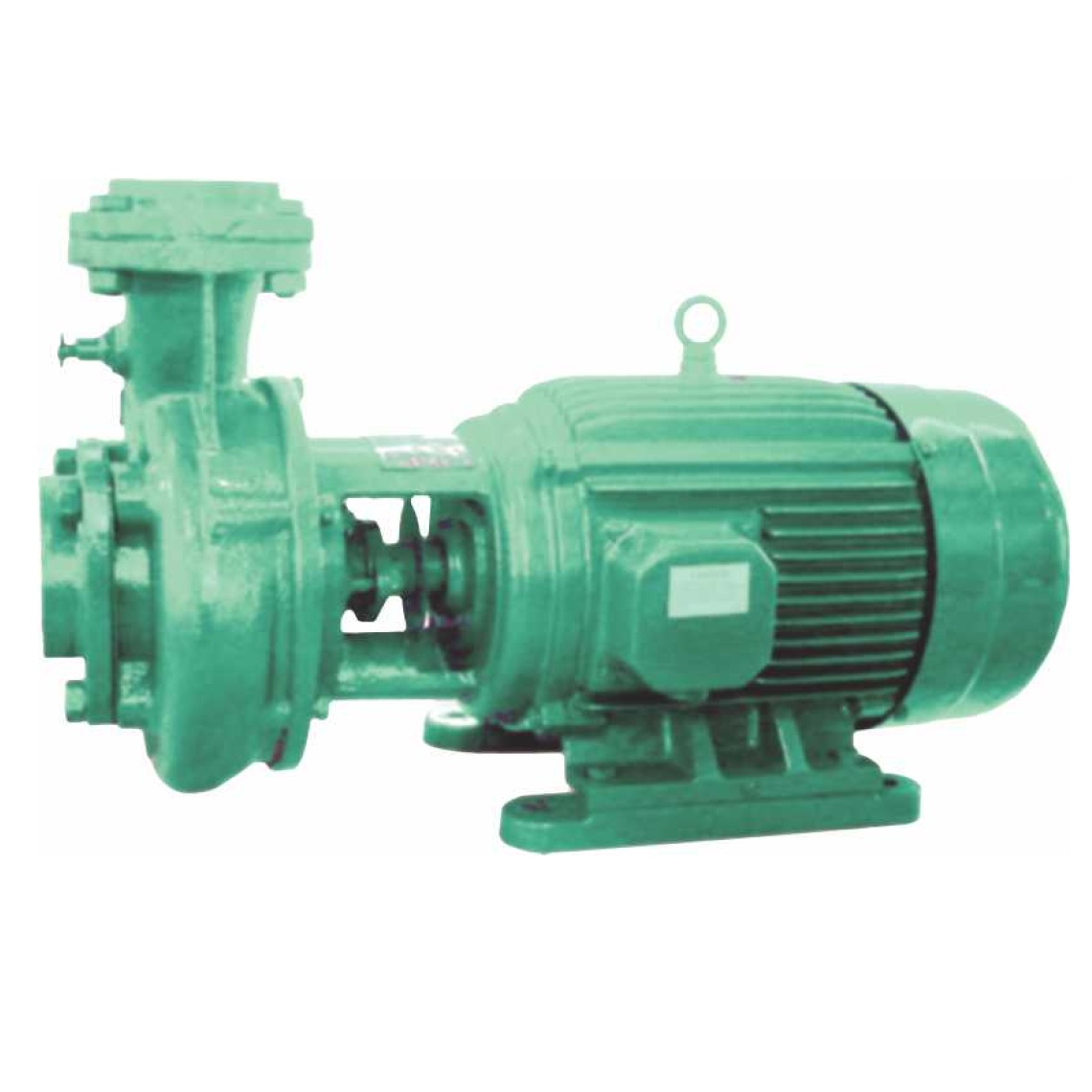

Monoblock pumpset 3 Phase - MPM
  • Technical Data
    Flow upto 2300 LPM
    Head upto 78 m
    Power upto 30 HP
    Voltage 230V (Single phase); 415V (Three phase)
  • Application
    Water transfer in - Bungalows / Farm houses / Apartments
  • Features
    Dynamically balanced rotating parts to ensure min. vibration, noise free operation & long bearing life and designed for wide Voltage fluctuations

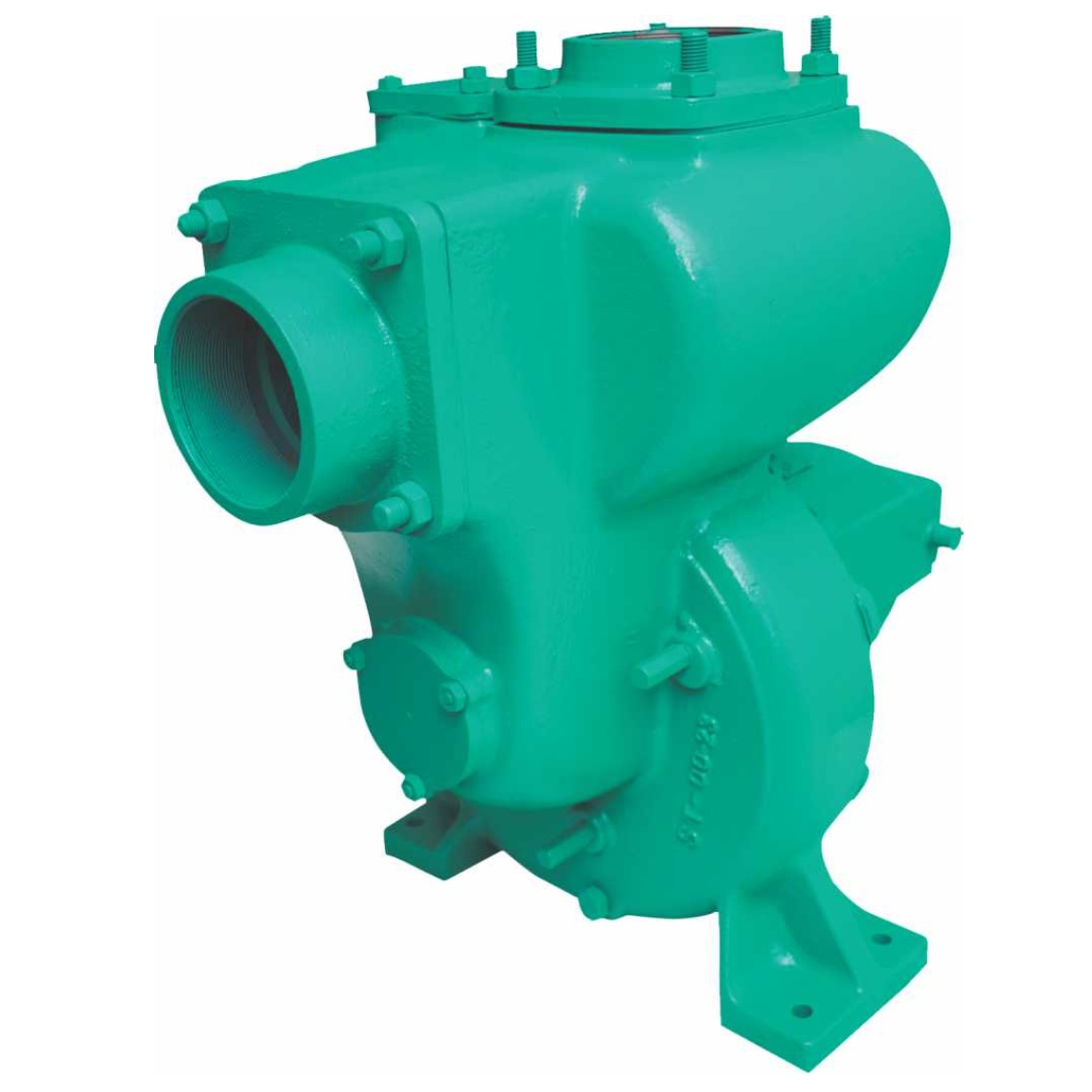

Self-priming non-clog pumpset - MNC
  • Technical Data
    Flow upto 4446 LPM
    Head upto 34 m
    Power upto 26 HP
    Voltage 230V (Single phase); 415V (Three phase)
  • Application
    De-watering from trenches / pits / basements / godowns / multistory / shopping malls / hospitals / hotels / sewage pumping / rain water / flooding / mud transfer
  • Features
    Self priming and back pull out design for easy maintenance, non clog and semi open impeller enables to handle solids up to 40 mm, non asbestos PTFE gland packing along with stuffing box arrangement, motors are with high operating efficiency and suitable for wide voltage fluctuations, replaceable wearing parts and rewind able motor and stator and rotors are coated with rust proof solution for better corrosion resistance.


Self-priming non-clog pump engine driven - MNC
  • Technical Data
    Flow upto 4446 LPM
    Head upto 34 m
    Power upto 26 HP
    Voltage 230V (Single phase); 415V (Three phase)
  • Application
    De-watering from trenches / pits / basements / godowns / multistory / shopping malls / hospitals / hotels / sewage pumping / rain water / flooding / mud transfer
  • Features
    Self priming and back pull out design for easy maintenance, non clog and semi open impeller enables to handle solids up to 40 mm, non asbestos PTFE gland packing along with stuffing box arrangement, motors are with high operating efficiency and suitable for wide voltage fluctuations, replaceable wearing parts and rewind able motor and stator and rotors are coated with rust proof solution for better corrosion resistance.


Horizontal Open well Submersible pumpset 3 Phase - MPO
  • Technical Data
    Flow upto 2250 LPM
    Head upto 78 m
    Power upto 30 HP
    Voltage available in 3 phase
  • Application
    Water transfer in - Bungalows / Farm houses / Apartments / Agriculture
  • Features
    No need of foundation and foot wall as installed under water, SS shaft for long and trouble free life, energy efficient motor design, motor designed to operate in wide voltage range, motor filled with anti corrosive liquid to increase life of internal parts and strong carbon v/s stainless steel thrust bearing for longer life


Building Services

When it comes to water transfer, pressure boosting , fire fighting, utility services, drainage and dewatering solutions and products developed by Wilo are the ideal partners for high efficeincy pumps and pumping systems for high rise and commercial buildings like malls, airports and other properties.

Therefore Techflow Industry provides its customers with best sought-after solutions that fits their needs perfectly.



Water Management

Fresh, clean water is becoming increasingly scarce. For this reason, it is a constant challenge to obtain this precious resource and ensure that there is proper planning for supplying it. To this end, various new methods have been developed for obtaining potable water – and the springs, too, from which water is obtained, have grown in number.

Therefore Techflow Industry provides its customers with solutions and products combined with modern technologies powered & developed by Wilo to guarantee highly efficient and operationally reliable services, from installation to maintenance.

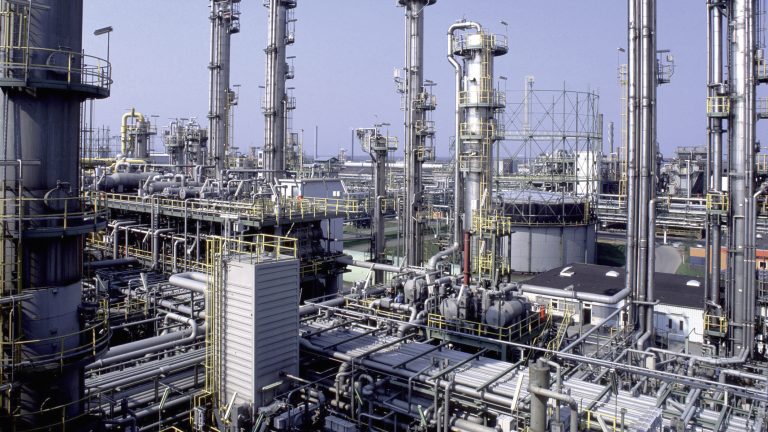

Industry Solutions

At Techflow Industry, we know that every sector of industry has its own high standards for production technology and the materials used in its components.

That's why we provide our partners and customers custom-tailored industrial solutions and products developed by Wilo to guarantee highly efficient, operationally reliable and dependable production processes.

  CONTACT INFORMATION
Company Name TECHFLOW INDUSTRY Authorised Dealer
Address Opp. I.O. Shanti Nagar, Old H.B. Road, Ranchi-834001, Jharkhand  
Telephone Number 651 - 357 3075 Active from 10:00 AM to 06:00 PM
Mobile Number +91 | 9934399011
E-Mail info@techflowindustry.com


  Have a query
